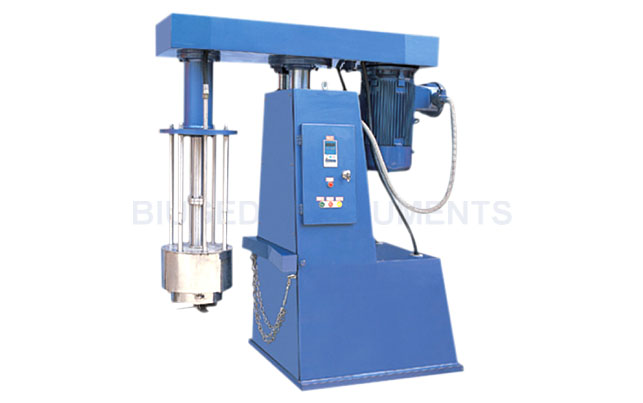

Basket Grinding Machine

This is a new model of fast high grinder for materials with high or middling stickiness, one type with variable frequency speed adjust and the other with electric frequency speed adjust; A model of ordinary design and a model of explosion-proof design are currently available for customers to choose from.


Characteristics

Basket design renders a thorough change of the traditional mode of grind

 Basket lift design makes the machine user-friendly while feeding and discharging

 Dual-blade design at the bottom of the basket frees the ground material of circulation assist, saving energy and reducing cost.

 Circulation cooling design in the secret compartment between the basket wall and inner container

wall provides effective protection for temperature-sensitive material.

 Blade at the basket bottom feeding upwards, all-round interactive collision spurred by the back and cross flows and convection between the ground materials and intermediary agent in the basket renders fast grind and distribution, ensuring the fineness of ground material.

 Speed of grind is adjustable, which makes it suitable for the grind of varieties of materials and, furthermore, saves grind time.

 Temperature-control system precisely surveys and controls the temperature  while grinding.

 Rotary blade design inside the cylinder prevents material from sticking to the wall, making the grind more thorough and the better-distributed.

 User-friendly service vehicle with machine eases labor-intensity.

 Timer relay controls grind time, making the machine more user

 Hydraulic lift

Ordering Information
Main Technical Parameters

BGD 8051

BGD 8053

BGD 8055

BGD 8057

BGD 8058

Motor Power

7.5 KW

11 KW

15 KW

18.5 KW

22 KW

Total Power

9 KW

13 KW

17 KW

21 KW

25 KW

Adjustable Speed

01450 r.p.m

Working Travelmm

800

1000

1000

1000

1200

Including Jacketed Stainless Steel Container

2×100L

2×150L

2×200L

2×300L

2×300L450L

Including 95% Zirconia Beads

18 KG

18 KG

28 KG

28 KG

38 KG

Overall Size cm

155×75×175

165×90×180

165×90×180

165×90×190

165×90×190
