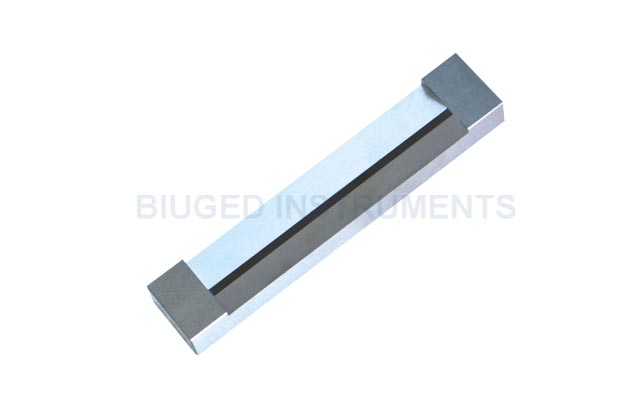

The Bar-Type One-Sided Applicator is made using modern technology of metallurgy with a precision grinding machine. The accuracy of the Gap Depth is ±1.0µm（50µm and below）and or 2% of Full Scale. It is designed with ASTM D 823-25 and ASTM D 3022.

It is made of high-grade, corrosion-resistant stainless steel 440C.

Main Technical Parameters

■ Effective Wet Film Width ：100mm

■ Total Length：130mm

■ Ordering Information:

BGD 201/1---25µm

BGD 201/2---37.5µm

BGD 201/3---50µm

BGD 201/4---75µm

BGD 201/5---100µm

BGD 201/6---125µm

BGD 201/7---150µm

BGD 201/8---200µm

BGD 201/9---250µm

BGD 201/10---300µm

BGD 201/11---350µm

BGD 201/12---400µm

BGD 201/14---500µm

BGD 201/15---600µm

BGD 201 One-sided Applicator.pdf
