Automatic Film Applicator

Automatic Film Applicator enables experimental chemists to conveniently draw down precise coating film on the different substrates so as to reduce and eliminate errors caused by manual factors. Factors affecting the draw down are the shear rate and downward force applied to the applicator tool. It greatly improves the reproducibility of paint film.

BGD 218 and BGD 219 are the newest automatic film applicators, comparing the traditionalproducts, they have:

 Adjustable variable speed:5mm/s ~500mm/s

 High precision linear guide bar to ensure the draw down speed be more stable.

 The height of the applicator pusher can be adjusted to suit different substrates.

 Reasonable design bracket, easily and simply operated, and can add any load to applicate on easily bent substrates.

 Can set the starting point freely, is suitable for different size substrates

 Four types application distance can be selected freely.

 Applicable to all Biuged's different type and size applicators and wire bars

 Better repeatability for applicating film:

For BGD 218:special precise machining vacuum suction-gas plate with high smooth precision(Whole plate ‘s flatness is less than 5 micron)and special hardening treatment,ensure all kinds of substrat could be adsorbed smoothly and tightly.

For BGD 219:Special precise machining glass plate with high smooth precision(Whole plate ‘s flatness is less than 20 micron),easy to clean.

 Optimal design for vacuum plate to ensure suction power is distributed uniformly(only BGD 218).

 External vacuum pump eliminate all shake coming from traditional structure(put pump into machine)(only BGD 218).


BGD 219


BGD 218-01.jpg

BGD 218/1 (Touch screen)

BGD 218-03-E.jpg

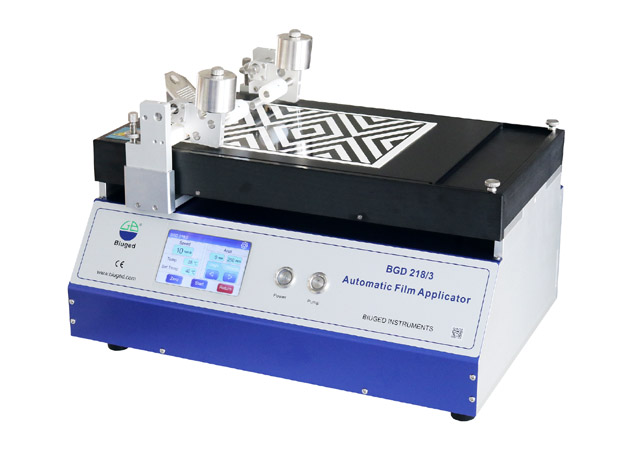

BGD 218/3 ( with Heating )


BGD 219-03-R.jpg

BGD 219 (Touch screen)

Ordering Information →

Technical Parameters ↓

BGD 218/1

BGD 218/2

BGD 218/3

With Heating

BGD 219

Touch screen

Method of fixing substrate

Vacuum adsorption

Clamp

Applicating Platform

Hard anodic oxidation aluminum with vacuum holes

Glass

Draw down vacuum bed Size

360mm×250mm

490mm×250mm

360mm×250mm

400mm×220mm

Draw down vacuum bed Size with hole

290mm×190mm

410mm×190mm

290mm×190mm

----

Max. application Length

250mm

375mm

250mm

280mm

Adjustable Draw down Speed

           5mm/s~500mm/s

  2mm/s~100mm/s

5mm/s~500mm/s

Carriage Holder Weight

500g×2pcs1KG or 1.25KG is optional

Total Power

370W

750W

50W

Temperature Range

----

RT+5℃~100

----

Temperature Uniformity

----

±5

----

Power Source

220V50Hz

Weight

40KG

46KG

42 KG

25 KG

Overall SizeNo vacuum pump

L×W×H, mm

500×345×340

635×345×340

500×345×340

550×320×340


BGD 218 Introduction Video


BGD 218 Operation Video


BGD 219 Introduction Video


BGD 219 Operation Video
