Instruments
Multi-function Whiteness Meter

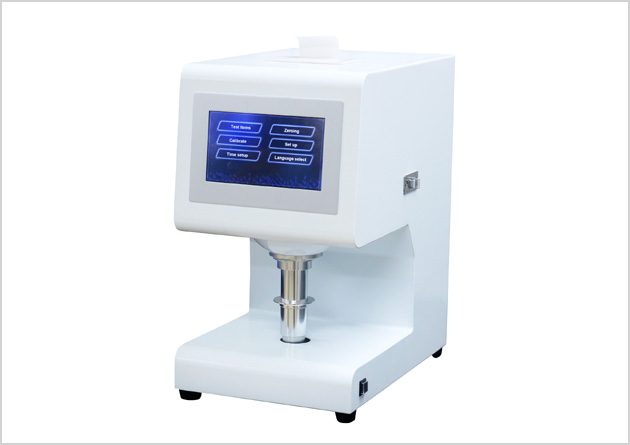

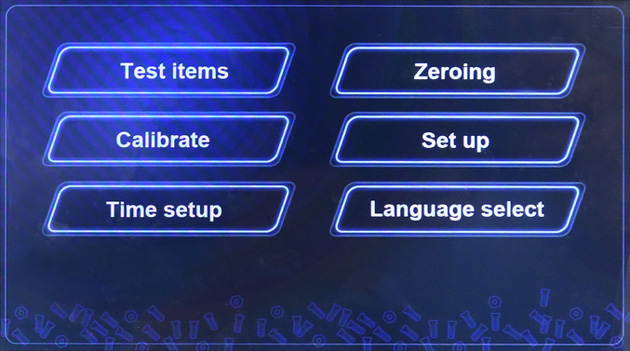

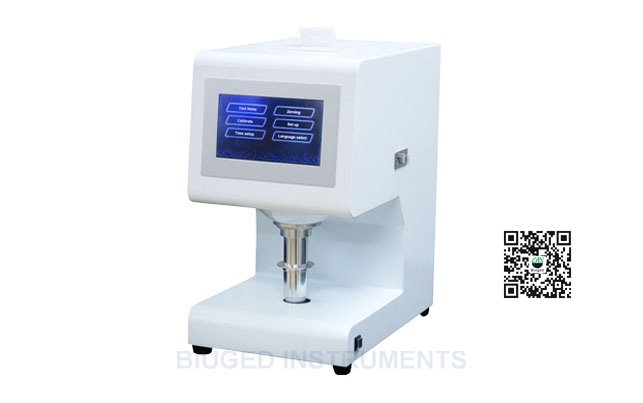

BGD 584 Multi-function Whiteness Meter adopts touch screen display and operation, integrates light, mechatronics and micro-computer measurement and control technology, and has the function of test data statistics processing, which can quickly and accurately mea sure the whiteness (brightness) of various objects. It can be widely used in the determination of whiteness of pigments, fillers or other powders in coatings, as well as in papermaking, textile, printing and dyeing, plastics, ceramics, enamel, grain, building materials and other industries. The instrument can measure not only ISO brightness (R457 whiteness), but also the fluorescent whiteness of fluorescent materials, and also the brightness stimulation value Y10, transparency, opacity, light scattering coefficient and absorption coefficient of coating, paper and other thin page materials.

BGD 584 complies with CIE 15 and CIE S 005 standard illuminants and geometric conditions, simulating D65 illuminant lightingadopting d / 0 lighting observation geometry conditions , diffusion ball diameter isφ150 mm, with two test hole diameter, φ 30 mm and φ 19 mm, equipped with light absorber, eliminating the influence of specular reflection light (SCE). The peak wavelength of spectral power distribution of R457 whiteness optical system is 457 nm, half height and width is 44 nm.

Standards

GB/T 23774 Inorganic chemicals for industrial use-General method for the determination of whiteness

GB/T 5950Method for measurement of whiteness of building materials and non-metal mineral products

ISO 105-J02 Textiles-Tests for color fastness-Part J02: Instrumental assessment of relative whiteness

ISO 2470-22008Paper, board and pulps — Measurement of diffuse blue reflectance factor — Part 2: Outdoor daylight conditionsD65 brightness)》

ISO 24712008Paper and board — Determination of opacity (paper backing) — Diffuse reflectance method

Features:

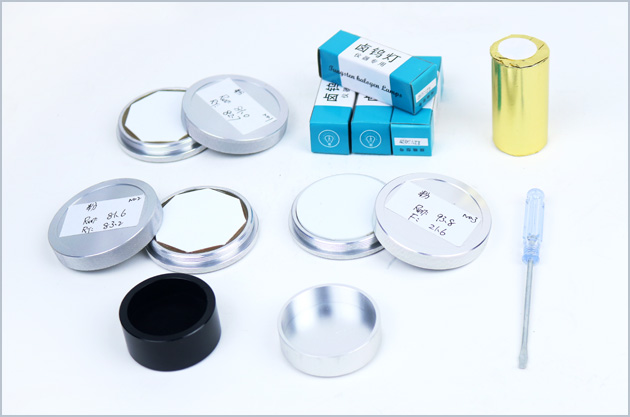

  Come with powder sampler for powder measurement

Come with thermal printer

  Can measure continuously sample many times and calculate automatically the arithmetic mean value.

  With power-off protection, zero adjustment, alignment, standard value and other data, even if the power is lost for a long time, the data will not be lost.


BGD 584-W-01E.jpg


BGD 584-W-02E.jpg


BGD 584-W-04c.jpg

 Measurement Range 0.0-120.0

 Zero Drift ≤ 0.1 %

 Indication Drift ≤ 0.1 %

 Indication Error ≤ 0.5 %

 Repeatability ≤ 0.1 %

 Specular Reflectance Error ≤ 0.1%

 Sample Size test plane ≥ Φ 30mmthickness ≤ 40mm

 Power Supply 220V ± 10%50Hz0.3A

 Working Condition temperature 0-40 , relative humidity 85%

 Overall Dimension L × W ×H, mm 365mm× 260mm × 425mm

 Net Weight About 11KG

 Ordering InformationBGD 584---Multi-function Whiteness Meter

Introduction Video


Operation Video
