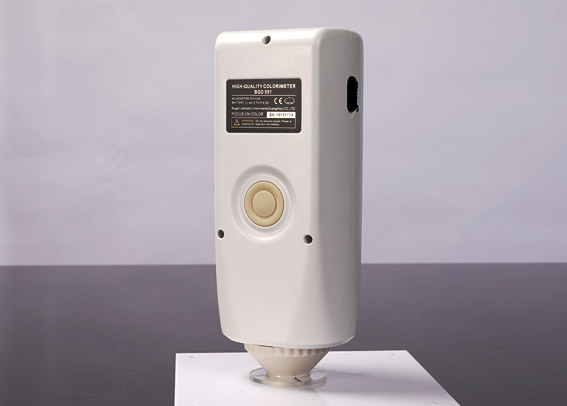

Economic Portable Colorimeter

BGD 551 Economic Portable Colorimeters offer a simple and fast measurement for color difference between two samples. It’s a higest cost performance colorimeter and very suitable for QC inspection of production and construction site.

 Double Locating Illuminating locating and cross locating

 Double Measurement End Face Large area measurement and small area measurement

 New Integrating Sphere Design More stable measurement

 Equipped with Rechargeable High-Capacity Li-ion Battery



 Feature and Advantages

Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

 Double Locating: Illuminating locating and precise cross locating.

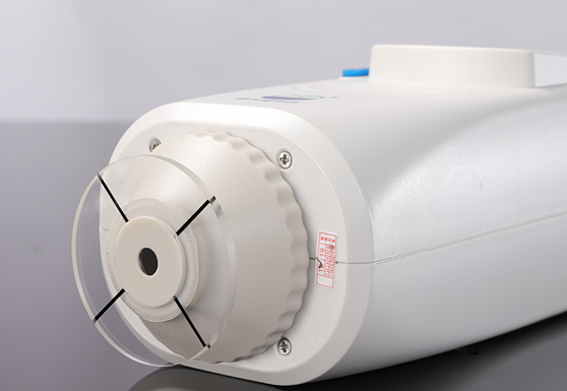

 Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

 New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.

4mm Measuring Aperture.

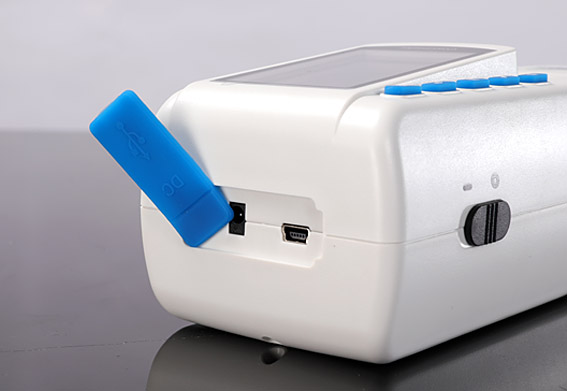

 Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

 Configure CQCS3 software. Connect PC computer to realize more functions.

 Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

 Hand-head structure: small and convenient; make the measurement easier.

 Spending huge sums on high-end mold. Product consistency approaches 100%.

High cost performance: large output, good quality, cheap products.


BGD 551-03.jpg


BGD 551-01.jpg


BGD 551-02.jpg


BGD 551-05.jpg


BGD 551-06.jpg

Technical Parameters

Illuminating/Viewing   Geometry

8/d

Measuring Aperture

Φ4mm

Detector

Silicon   photoelectric diode

Locating

Illuminating   Locating/Cross Locating

Measurement End Face

Large   stable end-face and small concave-convex end-face

Color Space

CIEL*a*b*C*h* CIEL*a*b*CIEXYZ

Color Difference Formula

E*a   b L*a*b* E*C*h*

Light Source

D65

Light Source Device

LED   blue light excitation

Errors Between Each Equipment

≤0.80ΔE*a b

Storage

100 pcs   standards   20,000 pcs samples

Repeatability

Standard deviation   within E*   a b 0.08

Average of   30 measurements of standard white plate

Language

English/Chinese

Weight

500 g

Dimension

205mm×67mm×80mm

Power source

Rechargeable   lithium-ion battery 3.7V@3200mAh

Lamp Life

3   years, more than 1.6 million measurements

Charging Time

8 hours--100%   electricity

                          PC Software

CQCS3   Software


■ Ordering Information:

BGD 551---Economic Portable Colorimeter

BGD 1390---Special test box for powder

BGD 1393---Mini Printer

BGD 1390---Special test box for powder

BGD 1393---Mini Printer
