Instruments

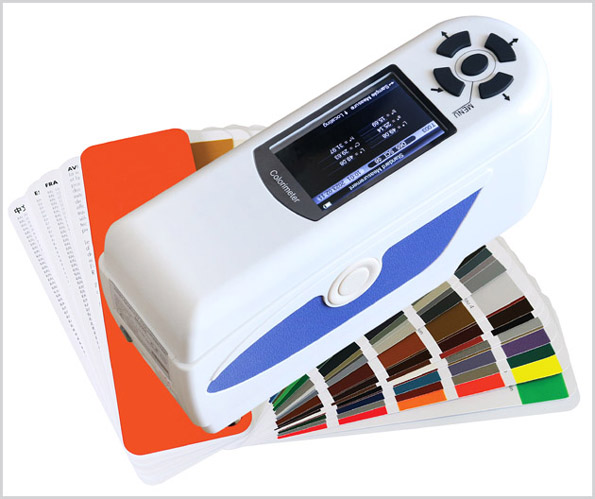

Precise Computer Colorimeter

BGD 555&556 Precise Computer Colorimete have adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. They are also designed with ergonomics and humanized operation and have applied for a number of patents. BGD 555& 556 are multifunctional colorimeters with high quality and competitive price. BIUGED insists on independent research whose technology innovation is unique in color management field. These colorimeters are the most convenient colorimeters for users.

Leading Humanity Design and Convenient Operation

Auto White and Black Calibration at Startup only for BGD 556

Structure Design in line with Ergonomics

Fool-style Operation Interface


Stable Measurement Performance

The average fluctuation of E is less than 0.06, actually more in 0.03~0.05.

Portable structure design which is more conductive to keeping the instrument stable when using.

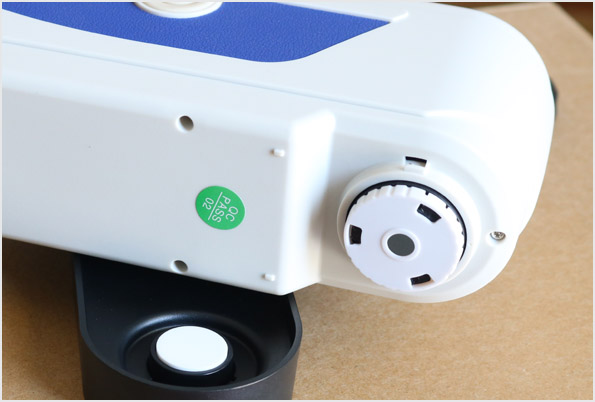

Flexible and Accurate Locating

Camera locating can solve the problem of locating a small area. The minimum width of locating is 4mmonly for BGD 556

Illumination locating is a fast, simple and convenient locating function which is the original function by Biuged



More Measurement Modes (Only for BGD 556)

★ Two measuring apertures for more circumstances.

★ Five color spaces for more color schemes selection.

★ Three light sources for more circumstances.

★ SCI & SCE measurement mode.

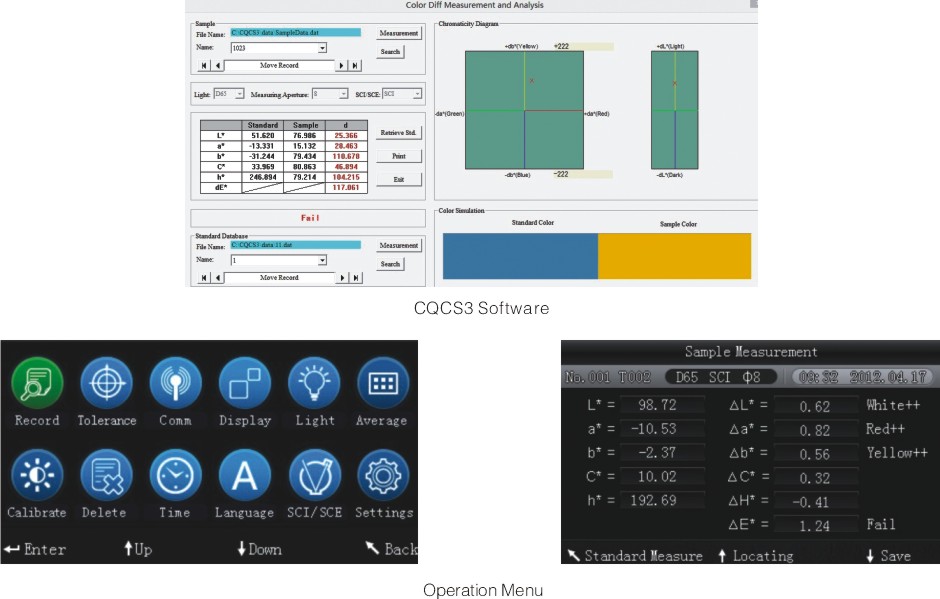

PC Software—Realize More Function Expansion

★ BIUGED has the intellectual property of PC software. The corresponding software serial number and password protection are configured in 3nh colorimeter.

★ Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

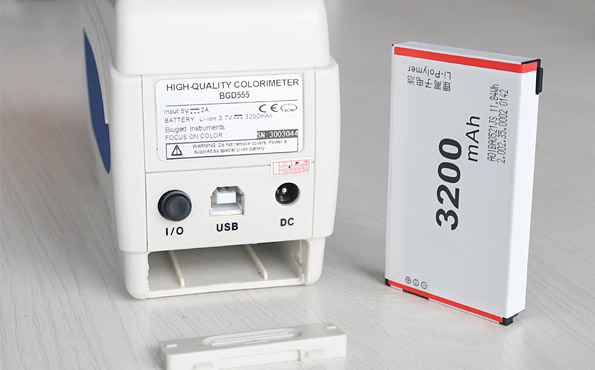

Advanced Power Management Design

★ BIUGED is the first enterprise using high capacity Li-ion battery in colorimeter.

★ BIUGED Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.










Ordering Information

Technical Parameters

BGD 555
  Precise Computer Colorimeter

BGD 556
  Precise Computer Colorimeter

Illuminating/Viewing   Geometry

8°/d

Measuring   Aperture

Φ8mm

Φ8mm/Φ4mm

Detector

Silicon photoelectric diode

Color Space

CIEL*a*b*C*h* CIEL*a*b*CIEXYZ

CIEL*a*b*C*h* CIEL*a*b*CIEXYZCIERGB CIEL*u*v* CIEL*C*hYellowness & Whiteness Color Fastness

Color   Difference Formula

E*a bL*a*b*E*C*h*

E*a bL*a*b*E*C*h*

ECIE94E   hunter

Light   Source

D65

D65D50A

Light   Source Device

LED blue light excitation

Errors   Between Each Equipment

≤0.40ΔE*a b

Storage

100 pcs standards 20,000   pcs samples

RepeatabilityAverage of 30 measurements of standard   white plate

Standard deviation   within E* a b 0.07

Standard deviation   within E* a b 0.06

Language

English/Chinese

Weight

500g

Dimension

205×70×100 mm

Power   source

Rechargeable lithium-ion battery 3.7V@3200mAh

Lamp   Life

5 years, more than 1.6   million measurements

Charging   Time

8 hours--100% electricity

Measuring   Times Before Recharging

3000 times in 8 hours

Operating   Environment

-10~40, relative humidity   0~85% with no condensation

PC   Software

CQCS3 Software

Data   Interface

USB

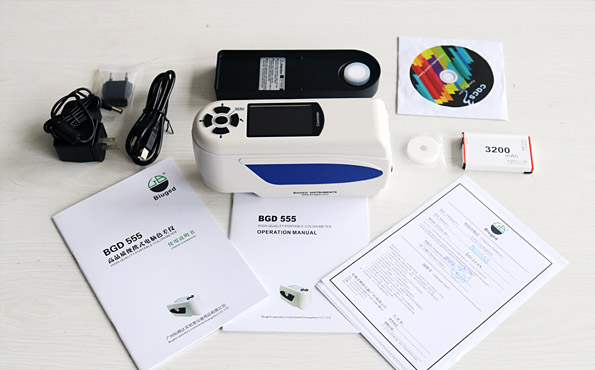

           Optional Accessories

BGD 1390--- Special test box for powder

BGD 1391--- Universal test components

BGD 1392--- Φ8mm extended aperture, available for measuring concave surface

(Only for BGD 556)

BGD 1393--- Mini Printer


BGD 1390---Special test box for powder

BGD 1391---Universal Test Components

BGD 1392---Φ8mm extended aperture, available for measuring concave surfaceOnly for BGD 556

BGD 1393---Mini Printer
