Small Aperture Precision Glossmeter

BGD 518/S Glossmeter is the product independently developed by our company with independent intellectual property. Complied with international standards, such as ISO 2813, GB/T 9754,and it is regard as the first type of glossmeter which is full-touch screen operation and large screen display with high quality management software in the worldwide. It has the characteristics of convenient usage, stable performance and accurate measurement. The instrument is powered by lithium battery internally installed.


 3.5-inch large capacitive touch screen, high resolution (480×320) full-view angle screen display, full-function touch screen operation

 Complied with ISO 2813, ASTM D 523, GB/T 9754, ASTM D 2457, etc.

 Beauty appearance, good man-machine communication interface

 Three working modes, multiple function settings to meet many different requirements

 Connect to PC, more extend functions

 Input gloss value manually, convenient to operate

 Display 5 sets of measurement data, good for comparison

 High configuration of hardware, incorporate lots of innovative technologies

 Built-in lithium ion rechargeable battery, economical and environmentally friendly

 Automatic shut-down function, saved by electricity-using

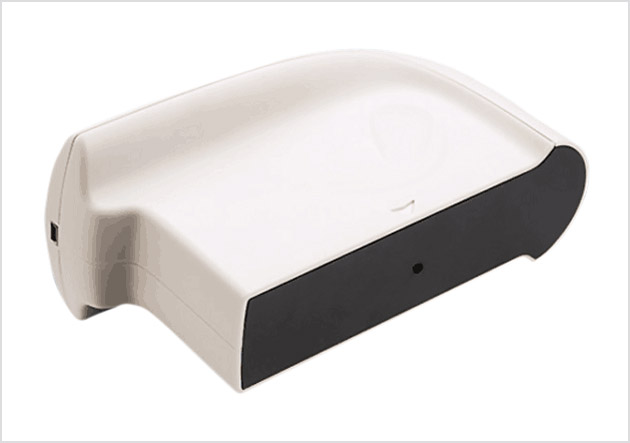

BGD 518-01.jpg

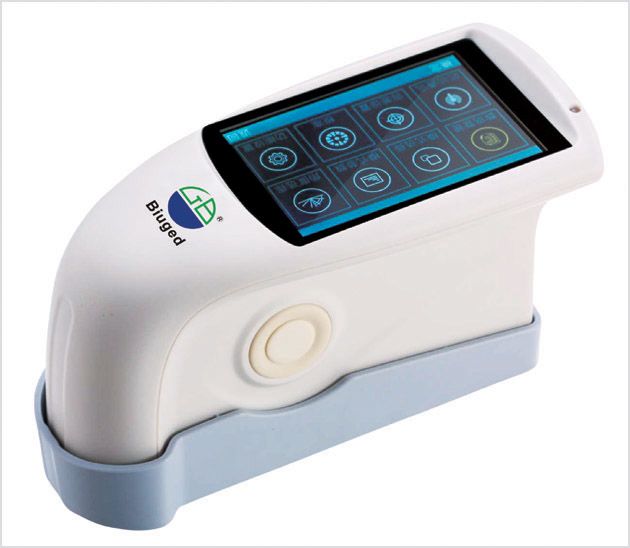

BGD 518-02.jpg

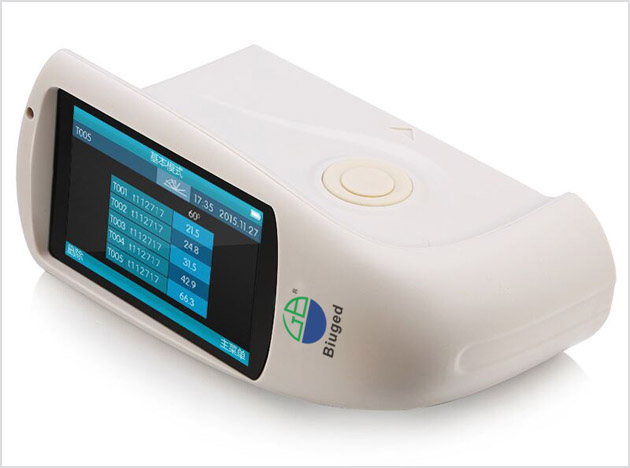

BGD 518-03.jpg

 Measure Angle: 60°

 Small Aperture: 1.5×2mm

 Measurement Range: 0~1000GU

 Division Value: 0.1GU

 Measurement Range: 0-10GU, 10-100GU, 100-1000GU

 Repeatability: ±0.1GU, ±0.2GU, ±0.2%GU

 Reproducibility: ±0.2GU, ±0.5GU, ±0.5%GU

 Measurement Standard: Conform with JJG696 first class gloss meter working requirement

 Chromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source

 Errors: ±1.5,±1.5%

 Measuring Time: 0.5s

 Dimension (L×W×H): 160mm×75mm×90mm

 Weight: 350g

 Language: Chinese/English

 Battery: 3200mAh Li-ion Battery, >10000 times (within 8 hours)

 Viewing Screen: TFT 3.5 inch, capacitive touch screen

 lnterface: USB/RS-232

 Data Save: Basic Mode: 1000, Statistical Mode: 5000, Continuous Mode: 5000

 Software: GQC6 Quality Control Software with QC report printing functions and more extended functions.

 Operation Temperature: 0~40℃ (32~104°F)

 Storage Temperature: -20~50℃ (-4~122°F)

 Humidity: <85% relative humidity, no condensation

 Standard Accessories: Power Adapter, USB Cable, User Manual, CD (including QC software), Calibration Plate

 Optional Accessories: Miniature Printer

 Ordering InformationBGD 518 /S---Small Aperture Precision Glossmeter
