Instruments
Economic Glossmeters

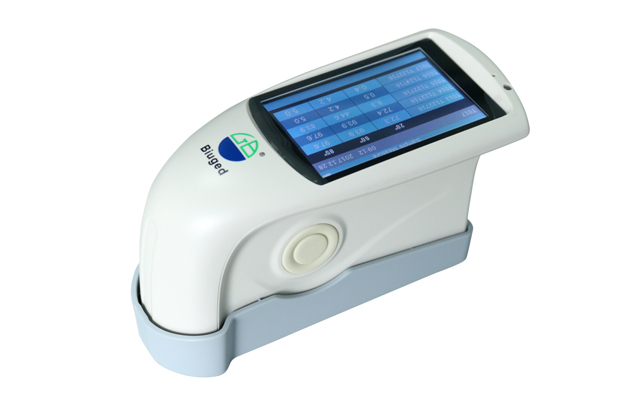

These economic glossmeters use plastic shell, in-built standard board and have portable small size. It is designed to measure gloss of paintfilminkplasticsstonepapertileenameletc.



Features:

Conform ISO 2813, ASTM D 523, ASTM D 2457 etc

Cost-effective, easy operation, small size, stable performance and high precision

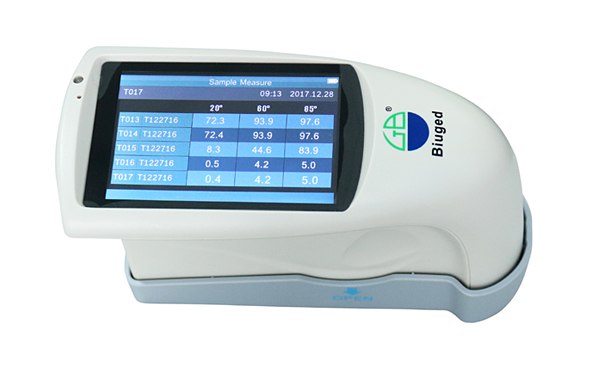

3 . 5 inch color screen, high resolution4 8 0 * 3 2 0, full-view

Chinese and English for selection

Show 5 groups of testing results Simultaneously, convenient to compare

For BGD 515/S, three angle20°/60°/85°can test simultaneously

Data storage function, max. is 1,000 groups

Come with QC software, can inquire and store testing data, or print quality report

Calibrate automatically when turn on

 Built-in lithium ion rechargeable battery

USB/RS 232 interface, can select mini-printer to print testing data

Auto power-off

 BGD 518/S Curve Glossmeter is specially used for curve or small area samples





Ordering Information →

Technical Parameters ↓

BGD 512/S

Glossmeter(60°)

BGD 518/S

Curve Glossmeter(60°)

BGD 515/S

Tri-Glossmeter(20°60°85°)

Measuring Range

0300 GU

01000 GU

20°/60°:01000 GU

85°0160 GU

Measuring Aperture,mm

9×15

1.5×2

20°:10×10

60°:9×15

85°5×36

ResolutionGU

0.1

RepeatabilityGU

±0.2%

ReproducibilityGU

±0.5%

AccuracyGU

±1.5

Response Times

0.5 s

Overall SizeL×W×H,mm

160×75×90

Net Weightg

350

Power Supply

3200mAh Li-ion Battery >10000 timeswithin 8 hours

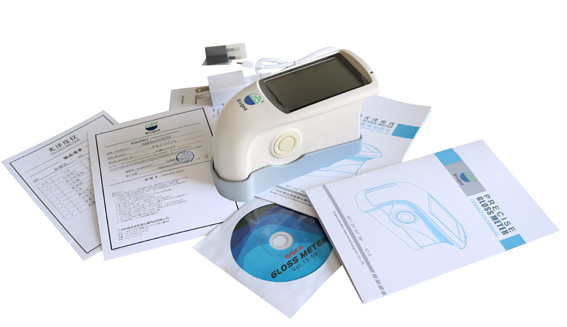

Come With

Power Adapter, USB cable, User Manual,Software CD, Calibration Platebuilt-in glossmeter
