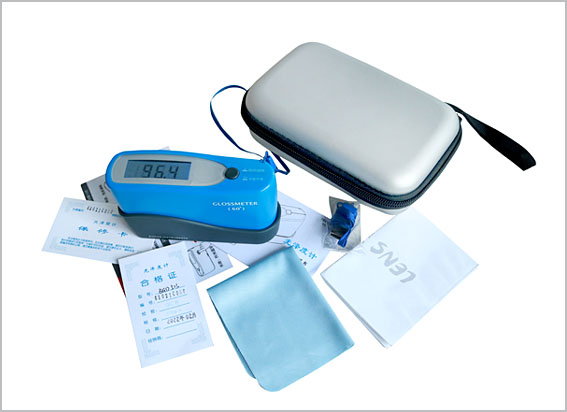

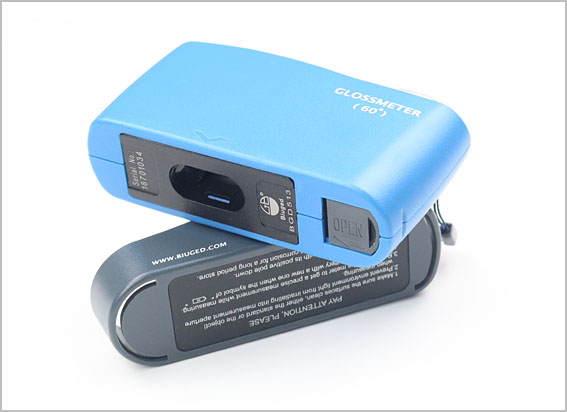

BGD 513 Basic Glossmeter uses plastic shell and one-body standard board.It can be used in many fields as below：

→ All kinds of coating and finishing surfaces,such as paints,varnishes,printing ink,etc.

→ Decorative materials,such as marble,granite,polishing brick,ceramic tile and so on.

→ The other kinds of materials and objects,such as plastic,woodenware,paper,etc.

At the same time, it has better characters comparing with old types：

◆ Small,Smart,Stable.

◆ Simple to use.

◆ A single battery only.AA size,Rechargeable or alkaline.

◆ The knob protector for operating with ease.

Features:

◆ Conform ISO 2813, ASTM D 523, ASTM D 2457 etc

◆ Calibrate automatically and operate by one button，simple to use

◆ One type of design, standard board as base，small size for portable

◆ Come with blue-tooth and software, convenient to transmit and save datas

◆ A single battery（AA alkaline or rechargeable）can last 60 hours.

◆ Protect measuring window by special scratch-resist coatings to avoid scratching by samples.

Main Technical Parameters：

■ Reading Range： 0.0～199.9 GU

■ Indication Error：≤ 1.2 GU

■ Zero Error：≤ 0.2 GU

■ Stability：≤ 0.4 GU

■ Spot Size： 20mm×10mm

■ Measuring Window Size： 30mm×14mm

■ Incidence Angle：60 Deg.

■ Volume（L×W×H）：123mm×38mm×65mm

■ Net Weight：300g

■ Power Supply：DC：1.2～1.5；One AA-size battery

■ Ordering Information：

   BGD 513/1---Intelligent Glossmeter （0.1 GU）

   BGD 513/2---Intelligent Glossmeter （1.0 GU）

BGD 513 Basic Glossmeter.pdf
