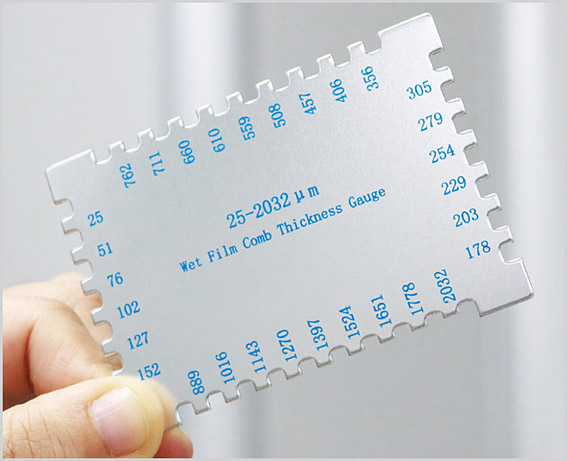

Wet Film Comb Thickness Gauges

The Wet Film Thickness Gauges are made of a comb-shaped design with precision cut gaps to determine the coating thickness by placing vertically onto a wet coated substrate. it is a corrosion-resistant stainless steel with a hole at the top comer so that a stringnot supplycan be attached for hooking

All Wet Film Thickness Gauges are machined by high precision CNC and with less than 3 micron devitation. They come standard with 10 gaps or more with inscriptions of the thickness at the side of each gap. It is recommended to replace a new gauge if there are chips, crack or uneven at the gapsof the gauge.

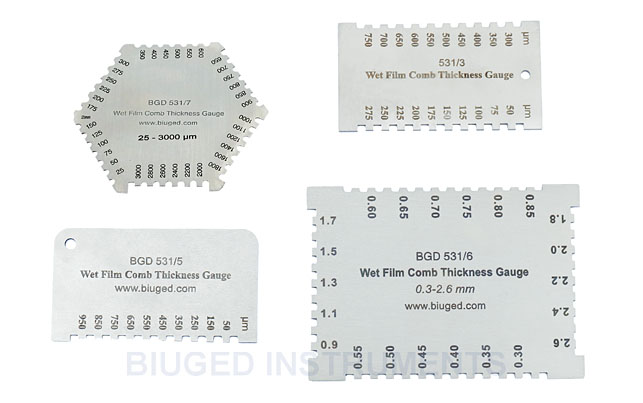

 Ordering Information:

BGD 531/1: 10µm-100µm  (Stainless steel,@10µm)

BGD 531/2: 20µm-200µm  (Stainless steel,@20µm)

BGD 531/3: 50µm-750µm  (Stainless steel,@25µm/@50µm)

BGD 531/4: 250µm-700µm (Stainless steel,@50µm)

BGD 531/5: 50µm-950µm  (Stainless steel,@100µm)

BGD 531/6: 300µm-2600µm(Stainless steel,Quadrilateral @25µm /100µm)

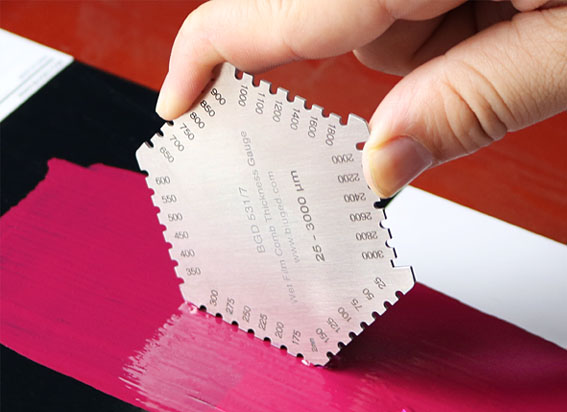

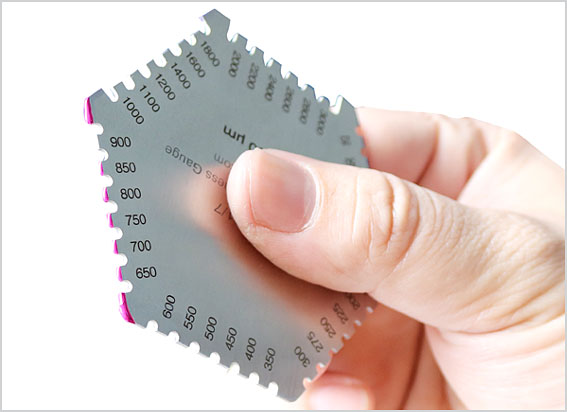

BGD 531/7: 25µm-3,000µm (Stainless steel,Hexagon)

BGD 531/11:0.2mils-6mils  (Aluminum,Hexagon,Min.order ≥ 1,000pcs)

BGD 531/12:1mils-80mils  (Aluminum,Rectangle,Min.order ≥ 1,000pcs)


Note: BGD 531/11 and BGD 531/12 can be marked with customer’s Logo if required


BGD 531-01.jpg


BGD 531-02.jpg


BGD 531-12-03.jpg
