Rolling Wheel Wet Film Thickness Gauges

The Rolling Wheel Wet Film Thickness Gauge has long been the standard for measuring wet film thickness in the coatings industry. (U.S.Patent No.3, 128,558).

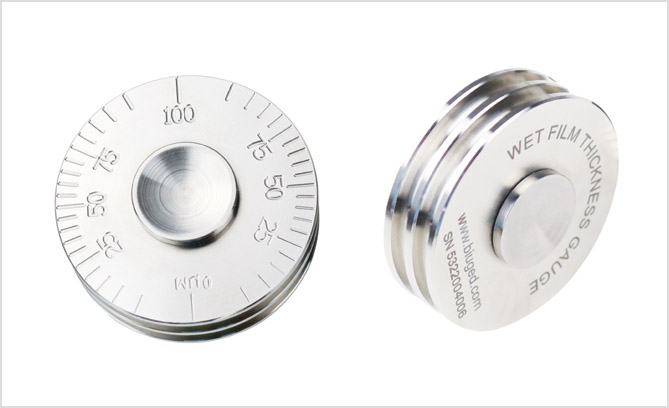

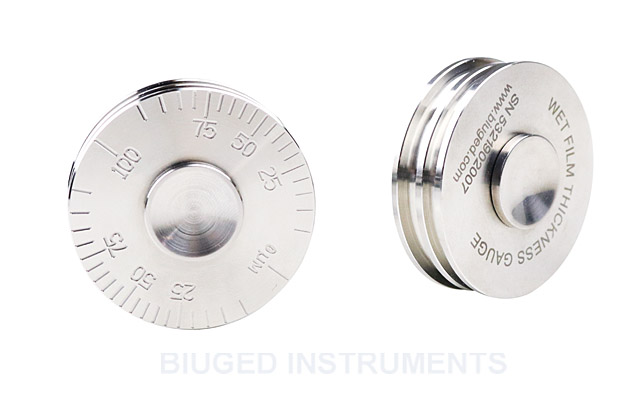

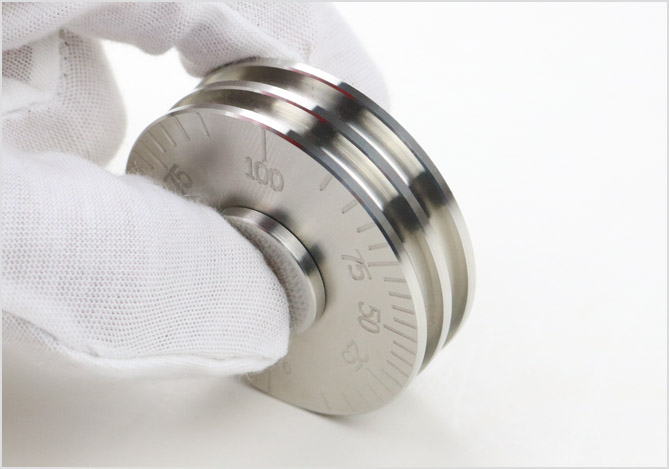

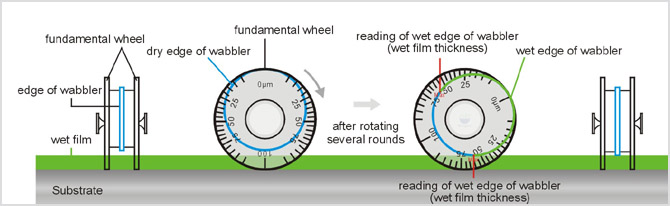

The gauge consists of an eccentric inner wheel, supported by two large outer concentric wheel. At a specific point, the inner wheel touches and picks up wet film when the gauge is rolled on the coated surface. The critical clearance may be read on a rotating scale.

Both the body of the gauge and the centre holder are made of high-grade stainless steel. The scale value are casted on 1 side.

Biuged offer three basic models in various ranges. All models have an accuracy of 2.5µm±0.0001 inor 2.5% full scale, whichever is greater



Main Technical Parameters

Dimensions 50(Φ)×15(H) mm@2mm path

Weight approx.177g

Ordering Information

  BGD 532/1---0-100µm  (@5µm)
  BGD 532/2---0-200µm  (@10µm)
  BGD 532/3---0-500µm  (@25µm)
  BGD 532/4---0-1,000µm(@50µm)


BGD 532-04.jpg


BGD 532-01.jpg
