Instruments

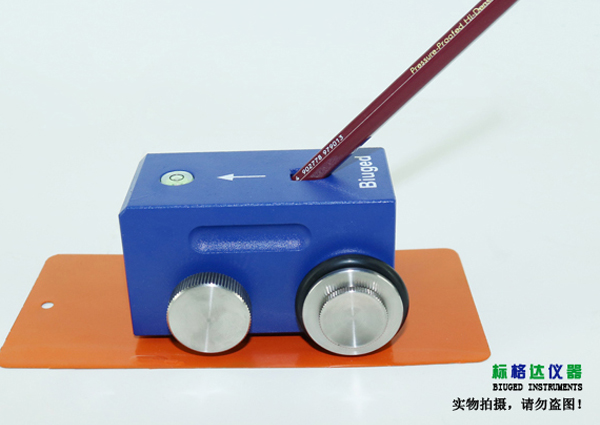

Pencil Hardness Tester

This instrument offers an easy method for the determination of film hardness for coating applied to a flat substrate. The pencil lead, prepared beforehand by rubbing it on fine abrasive paper400,is maintained at an angle of 45º and pushed with uniform pressure onto the sample, either leaving a superficial trace or causing destruction down to the substrate. It complies with the requirements of ASTM D 3363, ISO 15184.


Furthermoe, Biuged also offers BGD 506/2S whose all materials are stainless steel. Besides all characteristics as above, BGD 506/2S can lock pencil automatically and the block for adjusting leve is designed as monolithic construction.  which is convenient for operator to install and remove pencil and adjust working level, more easily and faster!




Main Technical Parameters

 Three points are touched on the tested surface(roller、pencil lead)
 The angle between pencil and the tested surface 45°
 Built-in spirit bubble, convenient to check level when tester is working
Pressure of pencil tip500g/750g/765g/1000g

Packing List

Pencil Hardness Tester, Body

1 Set of Pencils (13): 6B-5B-4B-3B-2B-B-HB-H-2H-3H-4H-5H-6H(Chunghwa).

                                   (BGD 506/2S is equipped with Mitsubishi pencil)

Special Pencil Sharpener

Abrasive Paper, 400 grade grit.

Calibration Certificate

 Ordering Information

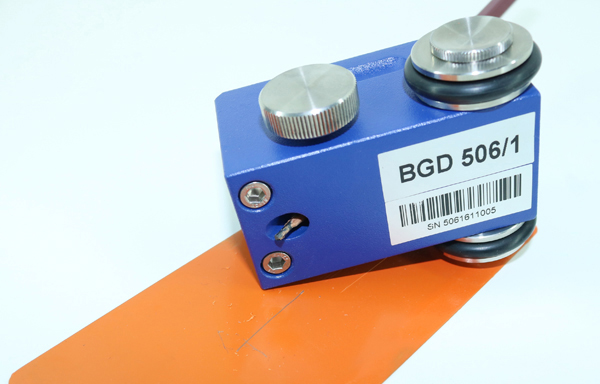

BGD 506/1---Pencil Hardness Tester(500g)

BGD 506/2---Pencil Hardness Tester (750g/7.35N±0.1N)

BGD 506/3---Pencil Hardness Tester (1000g)

BGD 506/4---Pencil Hardness Tester (7.5N±0.1N/765g)








BGD 506-2S.jpg

BGD 506-2S

MITSUBISHI PENCIL

    Used to test the film hardness speciallyhave 17 grades from 6B-9H

    Ordering Information
    UNI---A set of Mitsubishi Pencil17 pcs/set6B-5B-4B-3B-2B-B-HB-F-H-2H-3H-4H-5H-6H-7H-8H-9H
