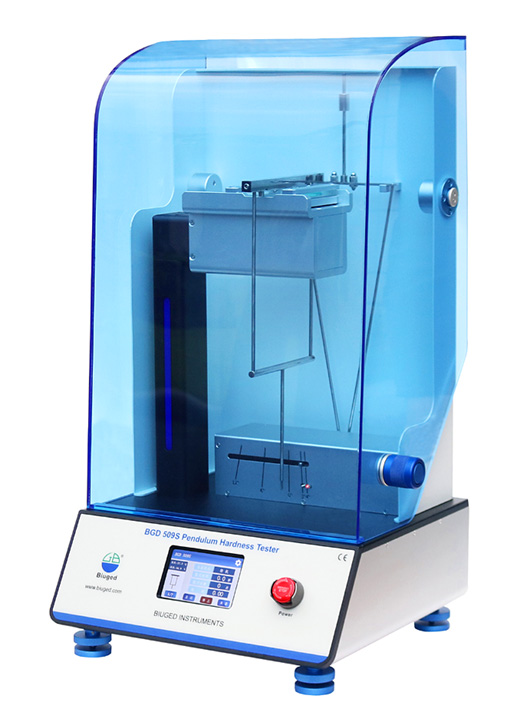

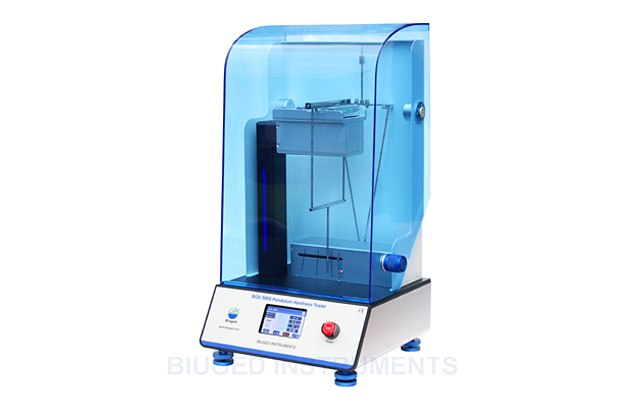

Pendulum Hardness Tester

A pendulum resting on a coating surface is set into oscillation and the time for the oscillation amplitude to decrease by an amount specified in this International Standard is measured. The shorter the damping time, the lower the hardness.

      Two test procedures are considered in some detail, namely those of König and Persoz. The Persoz and König methods differ by the period and amplitude of the oscillation. The Persoz test measures the time taken for the amplitude of oscillation to decrease from 12° to 4°; the König from 6° to 3°.

      The instruments embody the same principle — that the amplitude of oscillation of a pendulum touching a surface decreases more rapidly the softer the surface — but differ in respect of dimensions, period and amplitude of oscillation.

      BGD 509 Pendulum Hardness Tester is the newest product which can be used in accordance with the following National and International Standards: ISO 1522 which supersedes ASTM D4355; BS 3900-E5; DIN 53157; NBN T22-105; NF T30-016.

      It’s a simple to use instrument and can be supplied in one of three model types: Persoz, König, and Persoz and König combined



Features

 Automatic counter range0999

High precision machined pendulums are good stable, ensure a repeatable and comparable testing result.

Can change two test procedure: König or Persoz test

Suitable to different thickness substrates from 0.3mm6.0mm

Humanistic LCD Operator Interface

Release Pendulum with shutter release, can get more accuracy test result.

Lifting platform designed specially can fix specimen easily, platform can keep stable and no shake when pendulum is oscillating.

Spirit levels produced specially have high precision, convenient customer to adjust level precisely.

Can record automatically the time or times for the amplitude of swing to decrease from one angle to other angle and stop testing automatically.

Record the data with two light sensitive sensors

Can select record mode freely:  Timing mode or counting mode.

 Perspex cover reduces the effects of air flow on final results.

 Come with Calibration Certificate.



Ordering Information

Technical Item

BGD 509/K

BGD 509/P

BGD 509/K+P

Pendulum

König

Persoz

König+ Persoz

Weight

200g±0.2

500g±0.1

200g±0.2/500g±0.1

Ball Diameter

5mm0.2in

8mm0.3in

5mm/8mm

Deflection Start

12º

/12º

Deflection End

3º/4º

Period of Oscillation

1.4s

1s

1.4s/1s

Damping Time on Glass

250±10s

430±10s

250±10s/430±10s

Overall Size

485mm×400mm×770mmL×W×H

Net Weight

21.5 KG


Introduction Video


Operation Video
