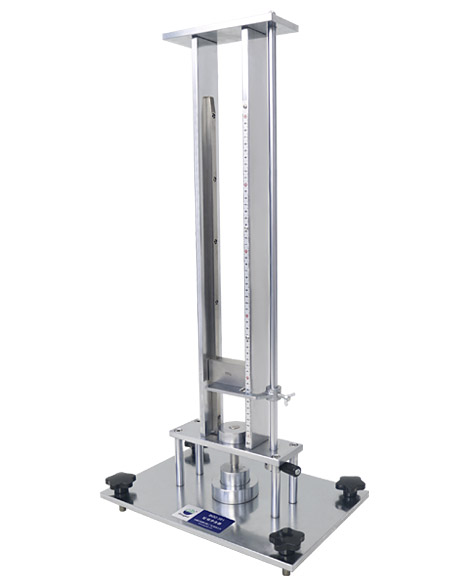

DuPont Impact Tester

BGD 301 Dupont Impact Tester is designed to test the impact endurance of coating material after coated.It is equipped with 5 different diameter indenters and relevant dies, 3 different weight weights.

To do an impacting test for painting and coating materials is to use an indenter with various round angles to touch the specimen in the beginning, and then a selected weight free dropping from a certain height to hit the indenter to impact the specimen. Running the same way to test three more specimens, and put and leave them for an hour, and then watch if there is any damagecrack or derformation on the coating..

It is compatible with ASTM D 2794,JISK 5400,CNS 10756.



Main Technical Parameters

 Impact Height50mm-500mmgrade 50mm

 Weights300g500g1000g

 Indenter Diameter1/21/4〞,1/8〞,1/16〞,3/16each

 Die Holder Diameter1/2〞,1/4〞,1/8〞,1/16〞,3/16each

 Overall SizeL×W×H):380mm×240mm×800mm

 Net Weightincludes all weights):24KG

 Ordering InformationBGD 301---DuPont Impact Tester



BGD 301-02.jpg


BGD 301-03.jpg


BGD 301-04.jpg

Introduction Video


Operation Video
