Wet Abrasion Scrub Tester

Paint often becomes soiled especially near doorways, windows, and in work and play areas. Coated surfaces need to be tested for resistance to abrasion caused by a brush, sponge, or other means. The Wet Abrasion Scrub Tester can produce a repeatable, controlled condition to simulate everyday use or wear patterns.

BGD 526 Wet Abrasion Scrub Tester is the newest machine which is developed by Biuged . It can examine washability and related properties that affect the stain resistance of coatings. Detergent performance testing can also be determined in a reproducible manner.

It accords with standards such as ASTM D2486ASTM D 3450ASTM D 4213ASTMD 4828DIN EN 11330EN ISO 11998 etc.



Feature

 Running speed can be set to meet requirements of different standards.

With four-digit counter, start the machine and it will automatically be stopped when reaching set times.

Compatible with a variety of abrasion pads to comply with different standards requirements, such as ISO, ASTM, DIN etc..

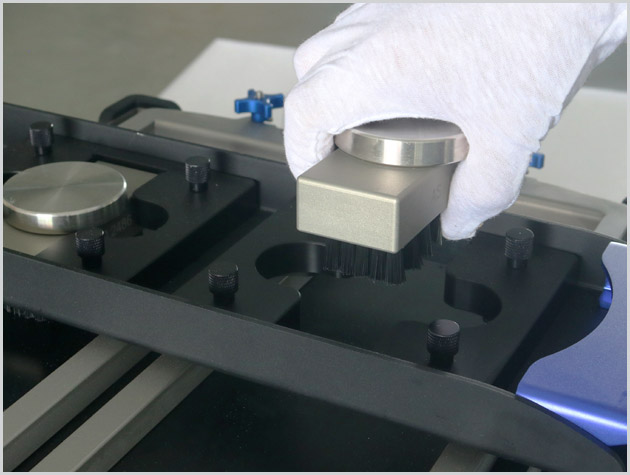

Quickly and easily to load and unload testing samples and replacing abrasion head.

Can work normally under different voltage and frequency

With stable and uniform running speed because of Push-rod design

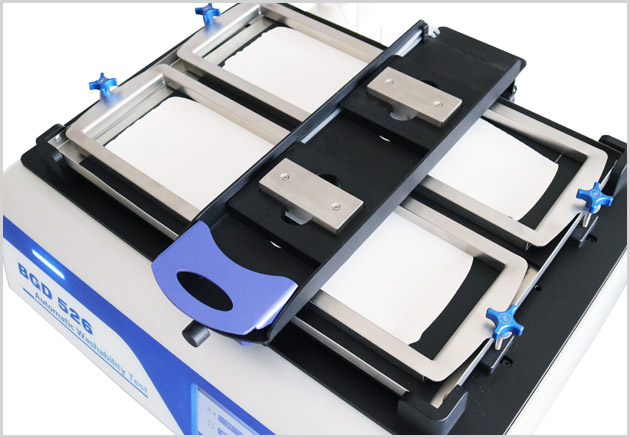

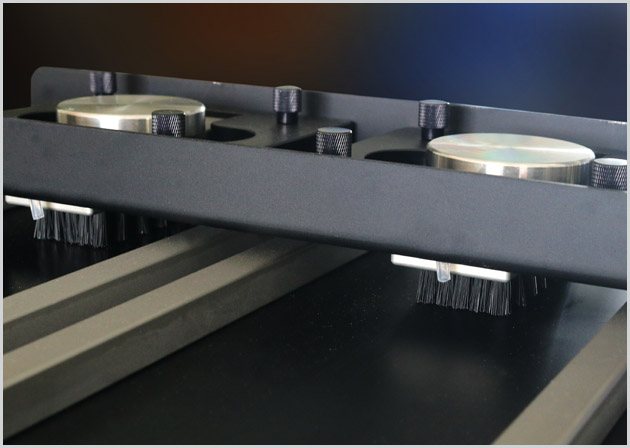

Features two brush holders for side by side testing

Long service life with hard and durable design

The whole machine body is made of anodized aluminum, having stable working status, repeatable test results, no exception even in the fastest speed of the stroke.

With peristaltic pump design, control scrub medium flow accurately.

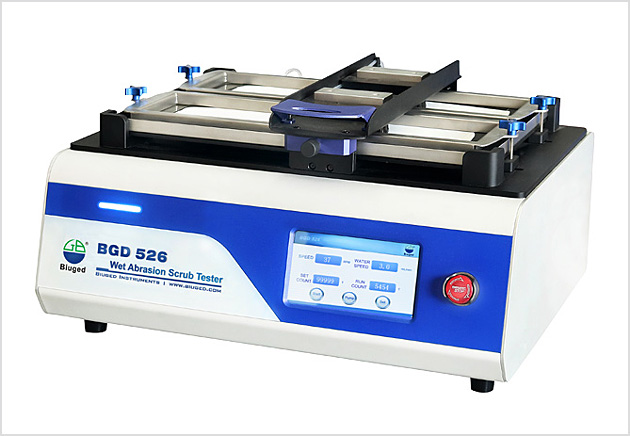

BGD 526


BGD 526a-01.jpg



BGD 526-02.jpg


BGD 526a-03.jpg

Stroke Length:300mm

Specification of brush:Nylon brush bristles in 5/4 pattern extending 19mm from block.

Weight of brush (including device holding brush):454±10 g(ASTM D 2486);135±1g(ISO 11998)

Frequency of travel :5~95 times/min(adjustable)

Range of count: 0~9,999 times

Size of test plate: 430×150×0.03mm

Power of motor:25W

Power:110V~220V;50/60 Hz

Overall size: 590mm×460mm×300mmL×W×H

■ Net Weight27 KG

Capacity of Water Container:1L

Ordering Information:

BGD 526/1---Wet Abrasion Scrub Tester ( ASTM D 2486 )

BGD 526/2---Wet Abrasion Scrub Tester ( ISO 11998, no includes peristaltic pump )

BGD 526/3---Wet Abrasion Scrub Tester ( ASTM D 3450)

BGD 526/4---Wet Abrasion Scrub Tester ( ASTM D 4213 )

BGD 526/5---Wet Abrasion Scrub Tester (ASTM D 4828 )

BGD 526/6---Wet Abrasion Scrub Tester (DIN 53778)

BGD 527---Wet Abrasion Scrub Tester (ASTM D 2486& ISO 11998)

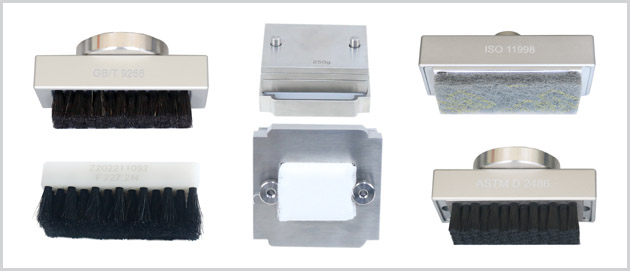

■ Optional Accessories:

BGD 1187---Abrasion Heads for ASTM D 3450(Sponge+ Weights, total weigh is 1,500g)

BGD 1188---Abrasion Heads for ASTM D 4213(Sponge+3M Scotch Brite handpads + Weights, total weigh is 470±

BGD 1189---Abrasion Heads for ASTM D 4828(Sponge+ Weights, total weigh is 1000±10g)

BGD 1191---Abrasion Heads for DIN 53778(Hog Bristle Brush+ Weights, total weigh is 250±10g)

BGD 1195---Abrasion Heads for ISO 11998(3M Scotch Brite handpads + Weights, total weigh is 135±1g)

BGD 1196---Abrasion Heads for ASMT D 2486(Nylon+ Weights, total weigh is 454±10g)

BGD 1197---Special Brush Carrier for Sponges Abrasion Heads

BGD 1045---Abrasive pad(3M Scotch Brite® handpads)(ISO 11998;Size---90×39mm; Pack of 50 pairs)

BGD 1364---Special nylon brush (ASTM D 2486;1 pair)

BGD 1365/A---Hog Bristle Brush(1 pair)

BGD 1510---Sponges (ASTM D 3450;12 pcs)

BGD 1511---Sponges (ASTM D 4213 & ASTM 4828 ;12 pcs)

BGD 2355---Brass Shim (165×12.7×0.25mm;pack of 10 pairs)

BGD 2208---Black plastic panel( 432×165×0.25mm;pack of 100 pcs)


Note:If choose BGD 1187, BGD 1188 and BGD 1189, then BGD 1197 is necessary

■ Optional Accessories:

BGD 1187---Abrasion Heads for ASTM D 3450(Sponge+ Weights, total weigh is 1,500g)

BGD 1188---Abrasion Heads for ASTM D 4213(Sponge+3M Scotch Brite handpads + Weights, total weigh is 470±

BGD 1189---Abrasion Heads for ASTM D 4828(Sponge+ Weights, total weigh is 1000±10g)

BGD 1191---Abrasion Heads for DIN 53778(Hog Bristle Brush+ Weights, total weigh is 250±10g)

BGD 1195---Abrasion Heads for ISO 11998(3M Scotch Brite handpads + Weights, total weigh is 135±1g)

BGD 1196---Abrasion Heads for ASMT D 2486(Nylon+ Weights, total weigh is 454±10g)

BGD 1197---Special Brush Carrier for Sponges Abrasion Heads

BGD 1045---Abrasive pad(3M Scotch Brite® handpads)(ISO 11998;Size--- 90×39mm; Pack of 50 pairs)

BGD 1364---Special nylon brush (ASTM D 2486;1 pair)

BGD 1365/A---Hog Bristle Brush(1 pair)

BGD 1510---Sponges (ASTM D 3450;12 pcs)

BGD 1511---Sponges (ASTM D 4213 & ASTM 4828 ;12 pcs)

BGD 2355---Brass Shim(165×12.7×0.25mm;pack of 10 pairs)

BGD 2208---Black plastic panel( 432×165×0.25mm;pack of 100 pcs)


Note:If choose BGD 1187, BGD 1188 and BGD 1189, then BGD 1197 is necessary
