Instruments

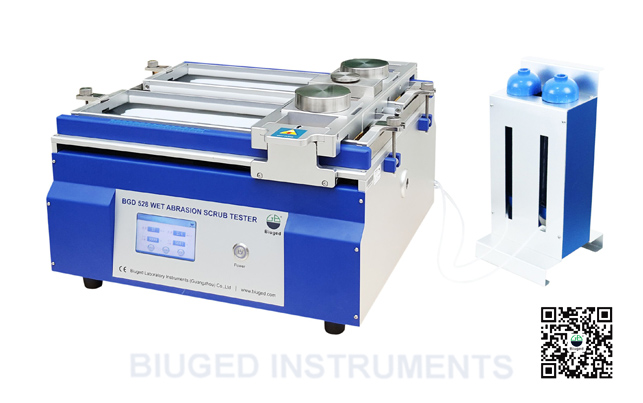

Multifunction Abrasion Scrub Tester

BGD 528 Multifunction Abrasion Scrub Tester is a powerful abrasion tester. By changing different abrasion heads, it can conform all testing standards for linear reciprocating abrasion, including wet abrasion scrub, sponge washability, scrub resistance, cleanability, dirt pickup resistance, MEK test, Rub test etc.

Moreover, this machine use touch screen to operate, user can set all required test parameters directly through touch screen, and also can check its working status at any time. Very easy and convenient to operate it.



Standards

ISO 11998  Paints and varnishes - Determination of wet-scrub resistance and cleanability of coatings

ASTM D 2486  Standard Test Methods for Scrub Resistance of Wall Paints

ASTM D 3450 Standard Test Method for Washability Properties of Interior Architectural Coatings

ASTM D 4213 Standard Test Method for Scrub Resistance of Paints by Abrasion Weight Loss

ASTM D 4828 Standard Test Methods for Practical Washability of Organic Coatings

ASTM D 5402 《Standard Practice for Assessing the Solvent Resistance of Organic Coatings Using Solvent Rubs》

ASTM D 4752 《Standard Practice for Measuring MEK Resistance of Ethyl Silicate (Inorganic) Zinc-Rich Primers by Solvent Rub》

ASTM D 7835《Standard Test Method for Determining the Solvent Resistance of an Organic Coating Using a Mechanical Rubbing Machine》

DIN EN 13300 Paints and varnishes - Water-borne coating materials and coating systems for interior walls and ceilings



Features

 With double working channels, each channel is equipped with a separate container for scrub medium . Operator can use two different type mediums to do two different tests, also can do wet abrasion and dry abrasion test at the same time.

 Working speed can be set from 5-95 times/minutes freelyWorking distance can be set from 0-300mm freely, meet with different standards.

 Push-rod design for reciprocating motion, thus working speed is more stable and more even and can get more reliable test results.

 With peristaltic pump, operator can set and control precisely scrub medium flow

 Installing and dismantling test panels or replacing different abrasion heads is more convenient and faster.

 All machine is made up of aluminum alloy, beautiful and strong, has a longer service time.

 Compatible for 110V/220V and 50HZ/60HZ


BGD 528


BGD 528-01.jpg


BGD 528-05.jpg


BGD 528-03.jpg


BGD 528-06.jpg

Stroke Length0300mmadjustable

Frequency of travel 595 times/minadjustable

Range of count 09,999 times

Size of test plate 430mm×150mm×0.03mm

Power of motor25W

Power110V220V50/60 Hz

Overall size 500mm×460mm×280mmL×W×H

Capacity of Water Container500ml×2

Ordering Information:  BGD 528---Multifunction Abrasion Scrub Tester

BGD 1179---Abrasion Heads for DIN 53778Hog Bristle Brush+ Weights, total weigh is 250±10g


BGD 1180---Abrasion Heads for DIN ASTM D 4752(Absorbent cotton gauze+ Weights, total weigh is 1000±10g)

BGD 1182/B---Abrasion Heads for ASTM D 4752&D 5402(Absorbent cotton gauze+ Weights, total weigh is 1000±10g;Abrasion area 1.5 c㎡

BGD 1182/C---Abrasion Heads for ASTM D 7835(Absorbent cotton gauze+ Weights, total weigh is 3000±50g;Abrasion area 2.0 c

BGD 1184---Abrasion Heads for Rub ResistanceFor printed materialsOffset paper+weightstotal weight is 20N±0.2N

BGD 1185---Abrasion Heads for ISO 119983M Scotch Brite handpads + Weights, total weigh is 135±1g

BGD 1186---Abrasion Heads for ASMT D 2486Nylon+ Weights, total weigh is 454±10g

BGD 1187---Abrasion Heads for ASTM D 3450Sponge+ Weights, total weigh is 1,500g

BGD 1188---Abrasion Heads for ASTM D 4213Sponge+3M Scotch Brite handpads + Weights, total weigh is 470±10g

BGD 1189---Abrasion Heads for ASTM D 4828Sponge+ Weights, total weigh is 1000±10g

BGD 1190/A---Abrasion Heads for Alcohol Resistance1c㎡ area25g/50g/100g/200g/500g weights+Cotton gauze

BGD 1190/R---Abrasion Heads for Rubber Resistance25g/50g/100g/200g/500g weights+5 rubbers


Consumables

BGD 1045---Abrasive pad (3M Scotch Brite® handpads (ISO 11998Size--- 90mm×39mm; Pack of 50)

BGD 1364---Special nylon brush (ASTM D 24861 pair)

BGD 1365/A---Hog Bristle Brush (1 pair)

BGD 1510---Sponges (ASTM D 3450;12 pcs)

BGD 1511---Sponges (ASTM D 4213 & ASTM 4828; 12 pcs)

BGD 2355---Brass Shim (165mm×12.7mm×0.25mmpack of 10 pairs)

BGD 2208---Black plastic panel (432mm×165mm×0.25mmpack of 100)
