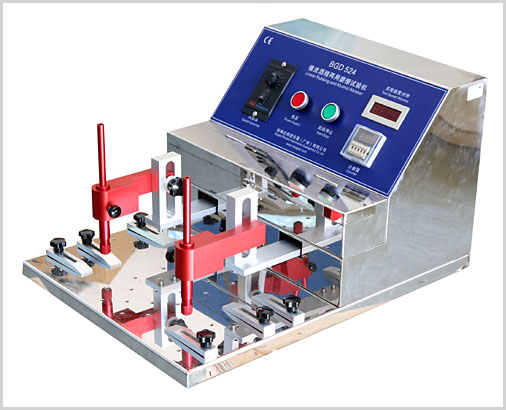

BGD series Linear Rubbing And Alcohol Abraser is a universal machine that can practically perform many kind of linear abrasion rub or alcohol testing by attaching the required accessories and weights，Dry or Wet.（The Wet Rub Test requires a liquid dispenser with dripping control knob）.

The Linear Rubbing And Alcohol Abraser is engineered to perform many International Standard Tests, such as Crocking Test, Eraser Test, Liquid/Solvent Rub Test, which make it a multifunctional rubbing machine.

■ Selectable Speed：0-75 rpm/min（stepless speed control）

■ Stroke Length（mm）：

BGD 524: 10～50mm
BGD 525: 0～75mm

■ Calculation Range： 1-9,999 times

■ Weights：

BGD 524：Two sets , each set includes 25g,50g,100g,200g, 500g

BGD 525：Two sets , each set includes 10g,20g,50g,100g,200g,300g,500g

■ Overall Dimensions：500mm×350mm×550mm（L×W×H）

■ Weight of whole machine：25KG

■ Ordering Information：

BGD 524---Linear Rubbing and Alcohol Abraser （with adding alcohol device ）

BGD 525---Linear Rubbing and Alcohol Abraser（with big working table and all made of stainless steel）

BGD 1361---EF 74 Special rub for testing (12 pcs/box)
BGD 1362---75215-NO 74 Special rub for testing (12 pcs/box)
BGD 1363---7017R Special rub for testing (12 pcs/box)

BGD 524&525 Linear Rubbing and Alcohol Abraser.pdf
