Falling Sand Abrasion Testers

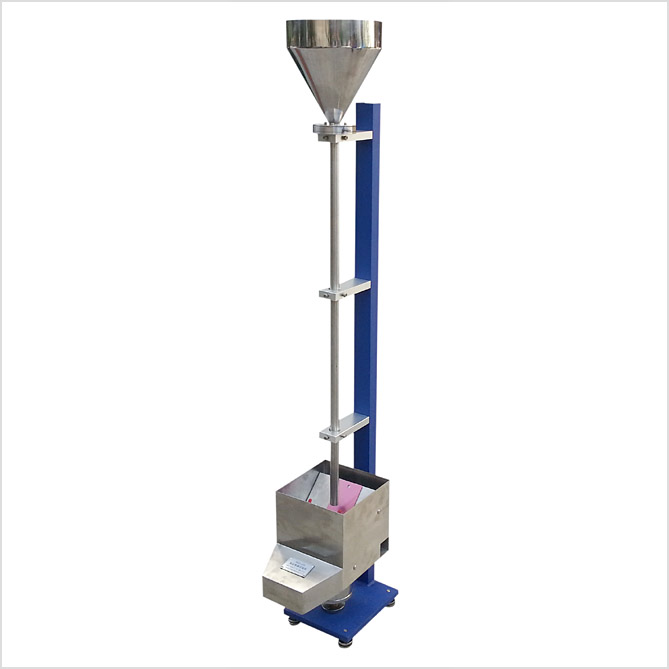

      BGD 529 Falling Sand Abrasion Tester is designed according to ASTM D 968. It’s applicable to determine abrasion resistance performance of organic coating. Abrasive is allowed to fall from a specified height through a guide tube onto a coated panel until the substrate becomes visible. The amount of abrasive per unit film thickness is reported as the abrasion resistance of the coating on the panel.

 Funnel with fan-shaped swithch is more convenient to operate
 The distance between guide tube and specimen holder is calibrated by special tool which comes which tester, more precise.
 Funnel installation height can be adjusted freely by below bearing.


BGD 529-01.jpg

BGD 529-02.jpg

BGD 529-04.jpg

BGD 529-03.jpg

 Overall dimensions230mm×200mm×1500mmlength by width by height
 Length of conduct pipe36 inch914mm
 Inner diameter0.75 inch19mm
 Volume of hopper3L
 Weight of whole machine25KG

Ordering Information

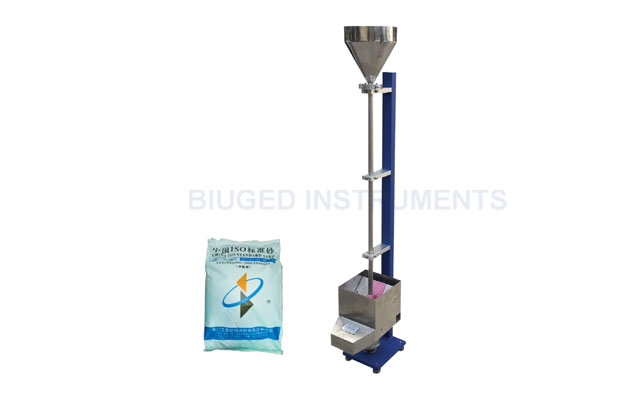

BGD 529---Falling Sand Abrasion Tester

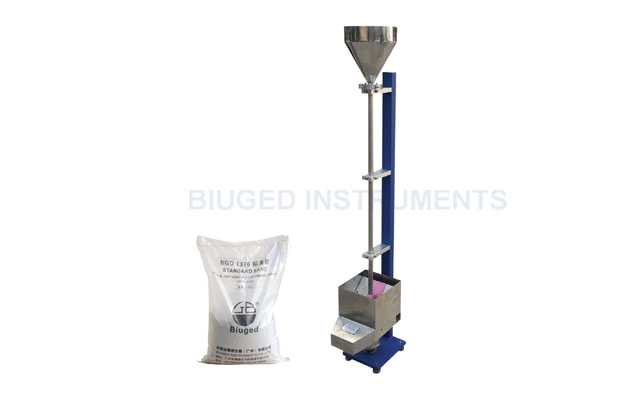

BGD 1370---Standard Sand (25kg/package)

Introduction Video


Operation Video
