R.C.A. Paper Abrasion Wear Testers

BGD 530 R.C.A Paper Abrasion Wear Testers have been designed to test numerous shapes and finishes with ease and consistency. A simple change to the adjustable vertical shaft will allow for testing flat, convex, and concave shaped surfaces. They can be used to test painted and organic finishes, foil, and inked keypad lettering for resistance to abrasion and wear. These testers have become a standard in automobile, appliance, electronics, cell phone, plastics and coating industries.

International ASTM F2357-04, Standard test method for determining the abrasion resistance of inks and coatings on membrane switches using the Norman Tool, Inc. "RCA" Abrader.

This tester is a standard to the auto, appliance, cell phone, plastics, and coarint industries. It uses an inexpensive roll of throw away abrasion paper. All build-up error is eliminated and consistent readings are easily obtained.

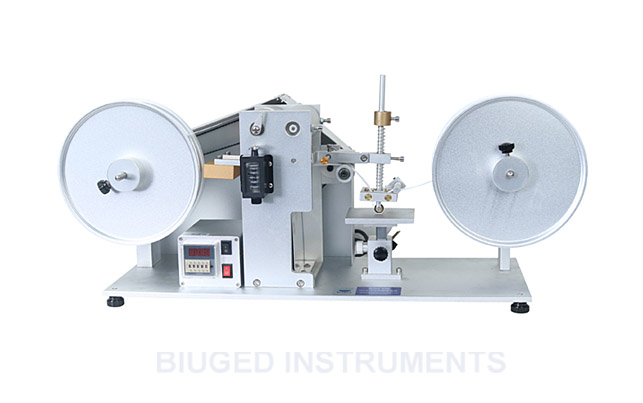

BGD 530-R.jpg



Weights55g175g275gsuitalbe different soft material or different test methodsNotestandard weight is 275g when there is no loss weight on leverit would be changed to 175g or 55g when adding two loss weights

CounterRotary counter

Paper moving speed2670mm/min.157mm for one cycle

Rotating Speed17±2cycles/min.

Power220V50Hz

Overall Size800mm×300mm×380mmL×W×H

Net Weight12 KG

 RCA Paper17.46mm widththe total length is 250m for one roll 1800 cycles

 Ordering Information

BGD 530---R.C.A Paper Abrasion Wear Testers

BGD 1360---Special R.C.A Paper (40 rolls/box)
