Hand Proofer

Each Biuged Hand Proofer mainly includes a rubber transfer roll and a spring-adjustable mechanically engraved anilox rollPyrimid type/surface is hard chrome plated. It gives customers more options for testing ink on polyethylene, cellophane, glassine, metallic foils, plastic films, paper and paperboard.

Moreover, what you see on the proof is what you’ll print on press. Since proofer rolls are available in a full range of screens to duplicate your press requirements, you can make any changes in ink or screen before you get to the pressroom!


Features

 The newest structure design, simple and easy to use, convenient to clean

 Perfect reproducibility for ink applicationocan reappear ink density

 The pressure between anilox roller with rubber roller is adjustable

 Save ink and time before printing


How to produce a sample proof

 Prepare a flat, clean sheet of the stock to be used.

 Adjust the anilox roller against the rubber roller by gradually turning the single vernier knob at the base of the hand proofer. A spring mechanism inside the handle makes it simple to position the rollers to get just the right amount of pressure.

 Put about 1/2 teaspoon of ink in the nip, rest the rubber roller on the stock, and draw the hand proofer toward you, smoothly and evenly.

That's all there is to it. What you see on the proof is what you'll get on your flexo press.

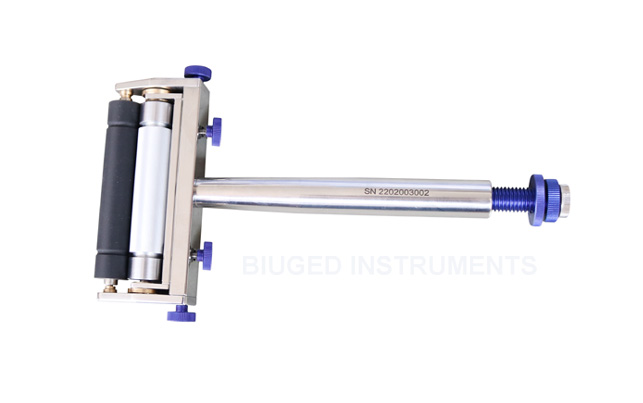

BGD 220-2A.jpg



 Proofing Width70mm

 The number of line100300LPI/Lines per inchalso can be customized

 Ordering Information

BGD 220/1----120 LPI Hand Proofer            BGD 220/2----160 LPI Hand Proofer

BGD 220/3----180 LPI Hand Proofer            BGD 220/4----200 LPI Hand Proofer

BGD 220/5----250 LPI Hand Proofer            BGD 220/6----300 LPI Hand Proofer

BGD 1380---Metal Anilox roller                   BGD 1381---Rubber roller



Line Screen Per Inch

LPI

Line Screen Per Centimeter

LPC

Volume

BCM/in2

Volume

cm2/m2

120

47.24

12.79

19.823

160

62.99

9.32

14.446

180

70.87

8.24

12.767

200

78.74

7.28

11.292

250

98.43

5.45

8.454

300

118.11

4.44

6.889

Note:

1. This table is only available for Pyramid type

2. For Line Screen, divide Cell (LPI=Line Per Inch) count by 2.54 to get Lines per CM

3. For Volume,multiply BCMbillion cubic micron per square inchby 1.55 to get cm3/m2
