Printing Proofer

Printing Proofer

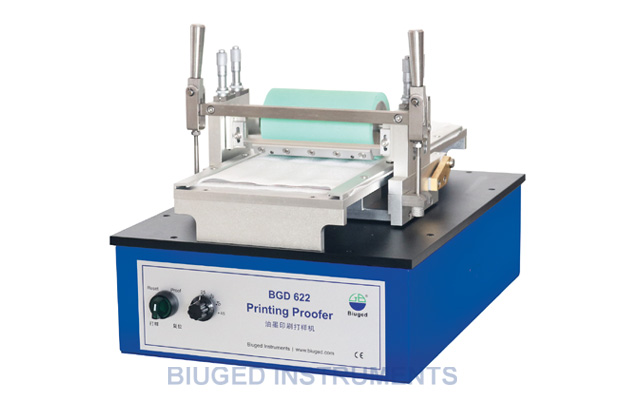

High quality proofs using gravure, gravure-offset or flexo inks are produced instantly using the BGD Printing Proofer. Featuring electronically engraved printing plates and variable printing speeds of up to 45m/min, this is an essential tool for all those involved in the manufacturing or use of liquid inks. Ideal for R &D and computer colour matching data, quality control and presentation samples. And these Printing Proofers are very easy to clean and all parts are solvent resistant.

Almost any flexible substrate can be printed or laminated

Excellent printability ensured by micrometer control

Multiple ink samples may be printed simultaneously for comparison purposes

High printing speeds enable use of inks nearing press viscosity

Ordering   Information

Parameter

BGD 622/1

BGD 622/2

Applicable   for

Gravure Ink

Flexographic Ink

Motor   Power

120W

120W

Impression   roller

Φ76×130mm

Φ50×130mm

Roller   Hardness

Shore   A55

Shore   A50

Printing   Speed

Four sorts 20-30-40-45m/min

Four sorts20-30-40-45m/min

Printing   Length

150mm

150mm

Power

220V 50Hz

220V 50Hz

Overall   Size

500mm×340mm×350mm

500mm×340mm×350mm

Weight

26KG

27KG


Printing Plate

Printing plates for use with the Printing Proofer are electronically engraved in exactly the same way as production cylinders. A choice of one or more of the standard plates available will normally be satisfactory.



TYPE

Number of Lines

Lines/inch

Density

%

Remark

A1

150

100

Solid   Area Plate

A2*

100

100

B1

150

100-80-60

Single   3 Wedge Plate

B2*

150

100-90-80

C1

150

100-90-80-70

90

1+4   Wedge plate

C2*

300

100-90-80-70

90

C3*

175

100-90-80-70

90

C4*

175

80-60-40-20

100

D1

150

100-95-90-85-80-75-70-60

100-95-90-85-80-75-70-60

Double   8 Wedge Plate

D2*

150

40-35-30-25-20-15-10-5

80-75-70-65-60-55-50-45

   Note:*” are special plates and need custom-made
