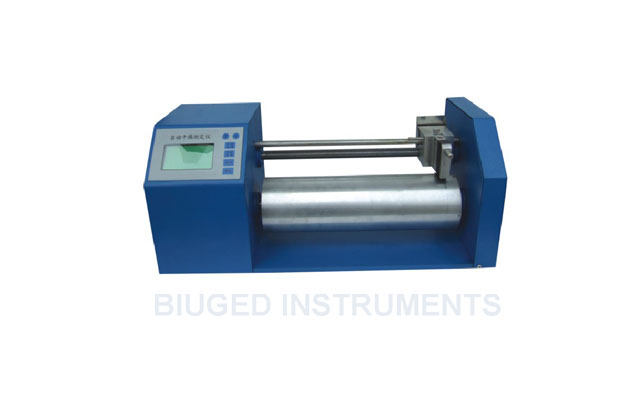

Automatic Drying Tester for ink

       Automatic Drying Tester for Ink is Is applicable to test the ink drying time. This tester consists of a rotating cylinder, a weight wheel and touch screen. When it work, the rotating cylinder rotates at constant speed, meanwhile the weight wheel moves in line along the cylinder axis at the constant speed. Applicate the sample on the parchmentfilm length is 30cm, then stick the parchment on the rotating cylinder. Move the weight wheel to the starting pointcylinder leftand set the needed timefrom 5hours to 20 hourswhich it go over the whole distancethe length of cylinder.If the ink don’t dry completely, then the weight wheel would leave a mark on the parchment blank space, till the test is finish. Obtain the test results by counting the ink traces on the parchment and rotating cylinder working speed.



Main Technical Parameters

Power220V±22V  50Hz

Speed of Weight Wheel 2mm/r

Settable time of whole distance520hour

Circle Numbers of Whole distance120r

Overall Dimensions500mm×200mm×220mmlength by width by height

Wheel Weight100g

Weight17KG

Ordering InformationBGD 660---Automatic Drying Tester for Ink
