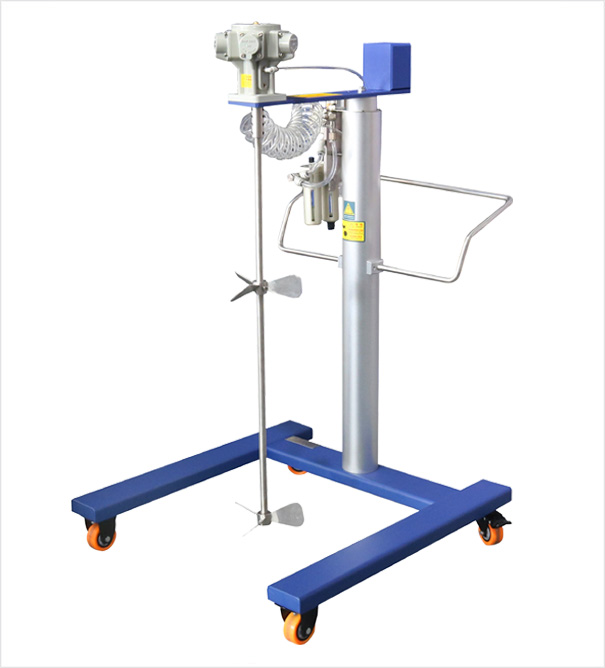

Air Pneumatic Mixer

These air pneumatic mixers are designed to be used in explosion-proof requirements environment, such as oil-based paints or some special solvents.They use compressed air 5kg/cm2/70psias power , and can be moved anywhere to finish mixing.

Explosion-Proof (no electric and spark)

Motor will not be hot when the machine working

Motor can rotate clockwise or counter-clockwise



Main Technical Parameters

Parameters

Ordering   Information

Power

Max.   Torque

Working   Speed

Capacity

Structure

BGD   720 Air Pneumatic Mixer

0.1HP

0.64 N.m

0-1100   r/min;

1-10   KG

Floor   Mode

BGD   722 Air Pneumatic Mixer

0.25HP

1.56 N.m

0-900   r/min

20-50   KG

Floor   Mode

BGD   723 Air Pneumatic Mixer

0.25HP

1.56 N.m

0-900   r/min

20-50   KG

Transportable

With   bench

BGD   725 Air Pneumatic Mixer

0.5HP

4.8 N.m

0-720   r/min

50-200   KG

Transportable

No   bench

BGD   728 Portable Pneumatic Agitator

0.5HP

----

0-700   r/min

10-50   KG

Portable


BGD 722-02.jpg

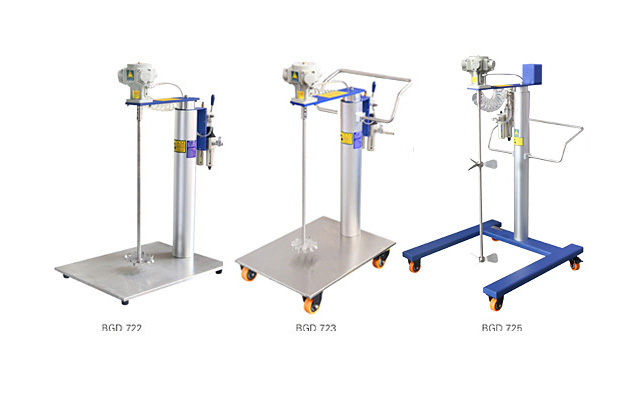

BGD 722


BGD 723-02.jpg

BGD 723


BGD 725-01.jpg

BGD 725


BGD 722-07.jpg


BGD 722-06.jpg



        Efficient dispersing blade
