Accessories for Dispersing or Milling

Accessories for Dispersing or Milling

When the sample is dispersed or milled, in order to achieve the best working efficiency, operator should choose suitable size dispersing blades,milling blades or containers according to the sample viscosity, quantities or other physical features.

Biuged has rich experience for designing and producing these dispersing blades, milling blades and containers.

All dispersing blades are made of special abrasion resistance stainless steel, and produced by precise mould. The number of  dispersing teeth and the angle of inclination are designed as European products, which can make the sample occur turbulent flow easily and increase dispersing efficiency. Furthermore, Biuged also designs efficient dispersing blades which are used for low viscosity sample, threr are four arc holes in its surface, which can disperse sample smaller and uniform.

For milling blades, all materials are special grade super abrasion resistance PTEE, which can lengthen service life to 2-3 times compared to similar goods on the market, furthermore, these blades have a high concentricity, so the working noise is low.

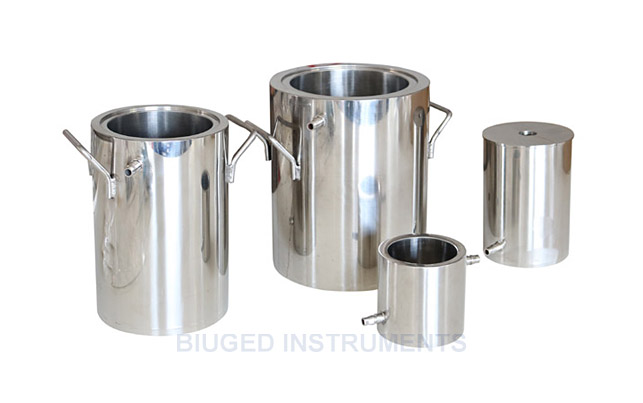

Biuged also offers different volume dispersing containers, they are all made of good quality thicken stainless steel(both inner wall and outer wall are more than 5mm). Except 0.3L, other contains are designed with double-wall which can add cooling water. Furthermore, the inlet and outlet are designed with quick couplings which are very convenient for operator to insert or remove cooling pipes.



 Efficient Dispersing Blade


Heavy Duty Dispersing Blade



Sand-milling Blade


Dispersing Container


                                                                     Biuged Containers Size

Ordering Information

BGD 1450

BGD 1451

BGD 1452

BGD 1453

BGD 1454

BGD 1455

BGD 1456

           Volume

0.3 L

  (Single-wall

    0.5 L

    1.25 L

      3 L

      5 L

     10 L

      20 L

Inner Diameter

73 mm

85 mm

103 mm

129 mm

164 mm

214 mm

268 mm

Inner Depth

71 mm

95 mm

165 mm

236 mm

253 mm

282 mm

355 mm

Welded Bottom


Arc Bottom







Handle





■ Optional Accessories:

BGD 1408---Extend Shaft for Dispersing Blade(25mm length,For BGD 741)

BGD 1409---Extend Shaft for Dispersing Blade(40mm length,For BGD 741)

BGD 1410---35 mm Dispersing Blade

BGD 1411/S---50 mm Efficient Dispersing Blade(For low viscosity sample)

BGD 1411/H---50 mm Heavy Duty Dispersing Blade(For high viscosity sample)

BGD 1412/S---60 mm Efficient Dispersing Blade (For low viscosity sample)

BGD 1412/H---60 mm Heavy Duty Dispersing Blade(For high viscosity sample)

BGD 1413---80 mm Dispersing Blade

BGD 1414---100 mm Dispersing Blade

BGD 1415---120 mm Dispersing Blade

BGD 1416---150 mm Dispersing Blade

BGD 1417---200 mm Dispersing Blade

BGD 1420---50mm Sand-milling Blade

BGD 1421---60mm Sand-milling Blade

BGD 1422---90mm Sand-milling Blade

BGD 1423---100mm Sand-milling Blade

BGD 1424---130mm Sand-milling Blade

BGD 1450---0.3 L Dispersing Container

BGD 1451---0.5 L Dispersing Container

BGD 1452---1.25 L Dispersing Container

BGD 1453---3 L Dispersing Container

BGD 1454---5 L Dispersing Container

BGD 1455---10 L Dispersing Container

BGD 1456---20 L Dispersing Container

BGD 1460---Stand for Explosion-proof box
