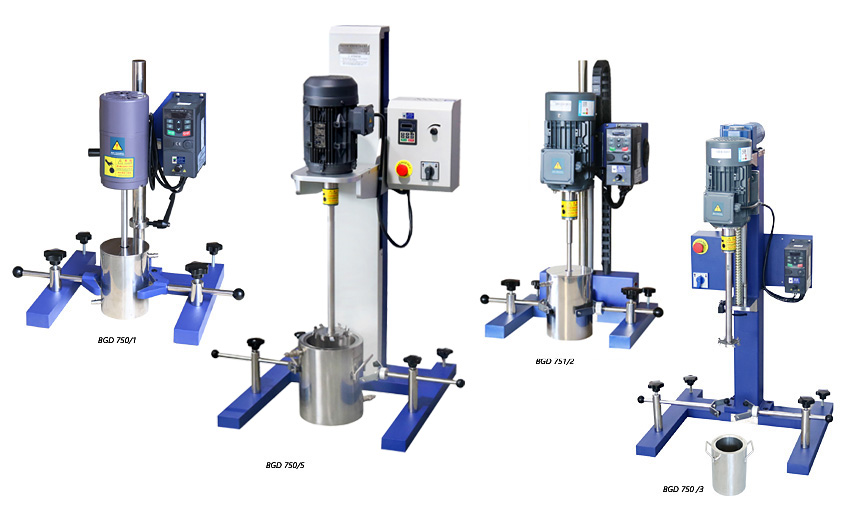

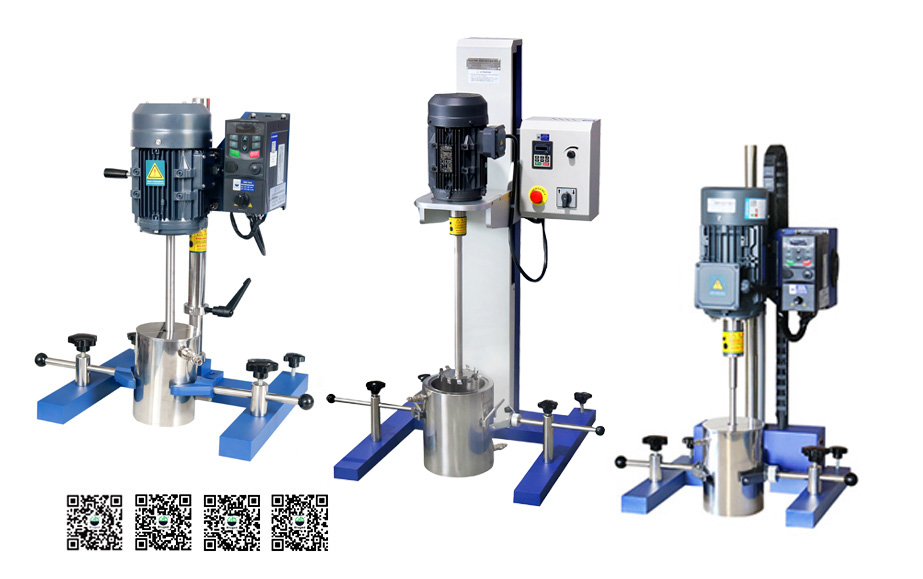

Sand-milling & Dispersing-agitator

BGD 750 series Versatile Sand-Milling Dispersing-agitator is a new product designed by our company. It is equipped with two sand-milling discs, two dispersing blades and a double-layer stainless steel container. With only one machine, operator can finish such as sand-milling, high speed dispersing and mixing. Furthermore, electric lift design is very convenient for female operator.



Features:

 With squirrel-cage motor of frequency control and use frequency converter to adjust working speed

Direct digits display axis revolution through display screen of frequency converter installed on the machine.

◆ BGD 750/1 & BGD 750/2 have lifting lever marked with scale, which are convenient to adjust

 the distance of dispersing blade to container bottom.

No carbon brush, no produce any flame when working

Lower noise, bigger torque and wider adjustable speed

Main parts are all made up of stainless steel, with perfect corrosion resistance

Inlet and outlet of cooling water are equipped with fast joints, convenient for operator to install or remove quickly.

Container is produced by a whole special mould, no welding line and bottom is arc structure, can be cleaned completely. Very convenient for operatore to do the different color sample.

Standard ConfigurationTwo or four(only for 550W&750W)different size dispersing blades , two different size sand-milling blades , a stainless steel double jacket container.

Power Supply220V 50HZ









            Ordering
         Information

Motor

Power

Speed
  (r/min)

 Container
  Capacity

Lift

Distance

           Lift

         System

   Dispersing
   blades   (mm)

       Sand-Mill
         blades

BGD 750/1

550W

0-7,500

1.25 L

240 mm

Spring lift by hand

35,50,60&80

50mm&60mm

BGD 750/2

750W

0-6,000

1.25 L

245 mm

Spring lift by hand

35,50,60&80

50mm&60mm

BGD 750/3

1,100W

0-6,000

3 L

320 mm

Electric

60&80

90mm&100mm

BGD 750/4

1,500W

00-5,000

3 L

320 mm

Electric

80&100

90mm&100mm

BGD 750/5

2,200W

0-4,000

5 L

520 mm

Electric

100&120

100mm&130mm

BGD 751/1

550W

0-7,500

1.25 L

300 mm

Electric

35,50,60&80

50mm&60mm

BGD 751/2

750W

0-6,000

1.25 L

300 mm

Electric

35,50,60&80

50mm&60mm

BGD 752/2

Explosion-proof

750W

0-3,000

1.25 L

300 mm

Spring lift by hand

35,50,60&80

50mm&60mm

BGD 752/5

Explosion-proof

2,200W

0-3,000

5 L

520 mm

Spring lift by hand

100&120

100mm&130mm

The Explosion-proof Products produced by Biuged is designed to meet the highest explosion-proof standards. Its motor is equipped with a Siemens Beide explosion-proof motor (with explosion-proof certification and CCC certification), rated at IIB T4 Gb. Additionally, the explosion-proof control box features the following characteristics:

Large-size design to meet the heat dissipation requirements of the frequency converter, equipped with an air circuit breaker.

Explosion-proof construction with a rating of IIB T6 Gb, suitable for Zone 1 applications (unlike common products rated only for Zone 2 with Gc classification).

The box is made of high-quality thickened carbon steel plate, with a thickness that fully complies with explosion-proof verification requirements and can undergo explosion resistance testing.

Equipped with a motor speed adjustment knob, eliminating the need for remote or button operation, ensuring user-friendly control.



BGD 750/1-J-019---Extend Shaft for Dispersing Blade25mm lengthFor BGD 741

BGD 750/1-J-020---Extend Shaft for Dispersing Blade40mm lengthFor BGD 741

BGD 750/Z-001---35 mm Dispersing Blade

BGD 750/Z-002---50 mm Dispersing Blade

BGD 750/Z-005---60 mm Dispersing Blade

BGD 750/Z-008---80 mm Dispersing Blade

BGD 750/Z-009---100 mm Dispersing Blade

BGD 750/Z-010---120 mm Dispersing Blade

BGD 750/Z-011---150 mm Dispersing Blade

BGD 750/Z-012---200 mm Dispersing Blade

BGD 750/Z-013---50mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-014---60mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-015---90mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-016---100mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-017---130mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-018---0.3 L Dispersing Container

BGD 750/Z-019---0.5 L Dispersing Container

BGD 750/Z-020---1.25 L Dispersing Container

BGD 750/Z-021---3 L Dispersing Container

BGD 750/Z-022---5 L Dispersing Container

BGD 750/Z-023---10 L Dispersing Container

BGD 750/Z-024---20 L Dispersing Container

BGD 752/2-J-011---Stand for Explosion-proof box

Biuged Containers Size

        Ordering
      Information

BGD

750/Z-018

BGD 750

       /Z-019

BGD 750

      /Z-020

BGD 750

      /Z-021

BGD 750

      /Z-022

BGD 750

      /Z-023

BGD 750

        /Z-024

Volume

0.3   LSingle-wall

0.5 L

1.25 L

3 L

5 L

10 L

20 L

Inner Diameter

73 mm

85 mm

103 mm

129 mm

164 mm

214 mm

268 mm

Inner Depth

71 mm

95 mm

165 mm

236 mm

253 mm

282 mm

355 mm

Welded Bottom


Arc Bottom







Handle






Heavy Duty Dispersing Blade



Sand-milling Blade


Dispersing Container

Introduction Video


Operation Video

Introduction Video (BGD 750/5)


Operation Video (BGD 750/5)
