Instruments

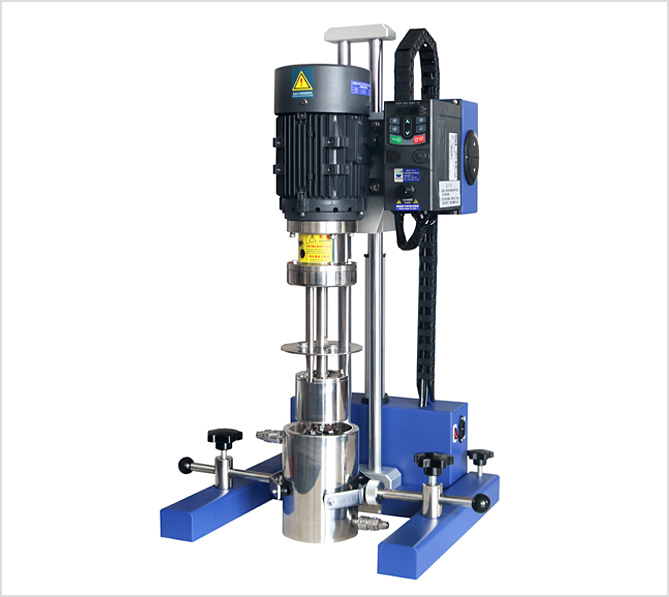

Lab Basket Mill(NEW)

For paint, ink laboratory special requirements, Biuged develops a newest high quality Lab Basket Mill. Compared with the traditional products, main parts of milling basket, such as basket wall, milling blades and pump impeller, are made of strong abrasion resistance material---zirconiaOther suppliers use stainless steel, extend greatly the service time of mill and also reduce influence to color of sample milled in basket.

Moreover, in order to offer a convenience for customers to replace sample rapidly and clear the basket completely, we design the basket as easy to dismantle structure. Customers can inspect the grinding mediumbeadsusage and replace it at any time.



Features

With 750W squirrel-cage motor of frequency control and use frequency converter to adjust working speed

Direct digits display axis revolution through display screen of frequency converter installed on the machine.

No carbon brush, no produce any flame when working

Lower noise, bigger torque and wider adjustable speed

Another dispersing blade is installed under the basket, disperse and mill the sample at the same time.

 Electric lift, easy and convenient to operate

Double wall milling basket and double wall container for cooling rapidlyFor BGD 756/2

Excellent mill results, can mill sample size to below 10μm shortly.

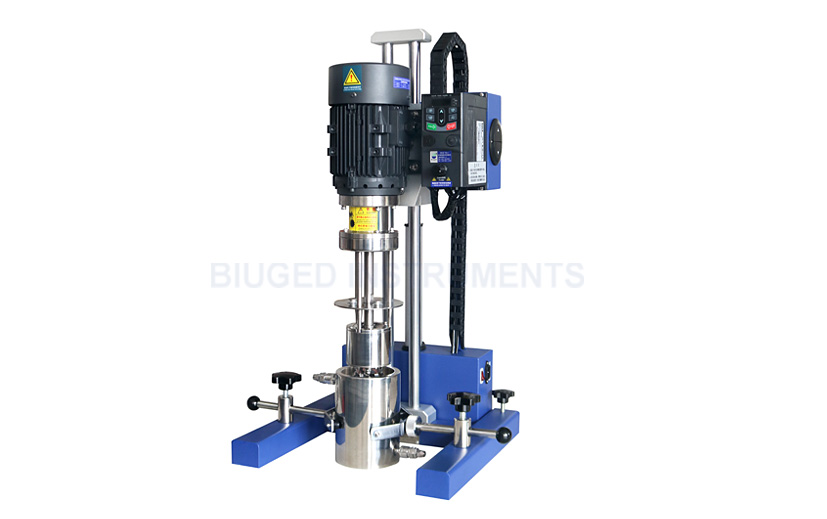

BGD 756


BGD 756-01.jpg

 Motor Power750W

 Working Speed0-3,000 r.p.mAdjustable

 Lift Distance300mm

Container Capacity1.25 L/3L

 Milling Basket Capacity160ml/260 ml

 Suitable Added Amount for Mill Medium180ml

 Suitable Mill Medium Sizemm1.8mm-2.0mmsuitable weight340g/400g

 Milling Blades Size:Φ52mm/60mm

 Dispersing Blades Size:Φ60mm/80mm

Overall Size480mm*430mm*970 mm

Net Weight50KG
 Power Supply220V 50Hz/60Hz
 Ordering Information

BGD 756/1---Lab Basket Mill1.25 L
BGD 756/2---Lab Basket Mill
3 L
