Instruments

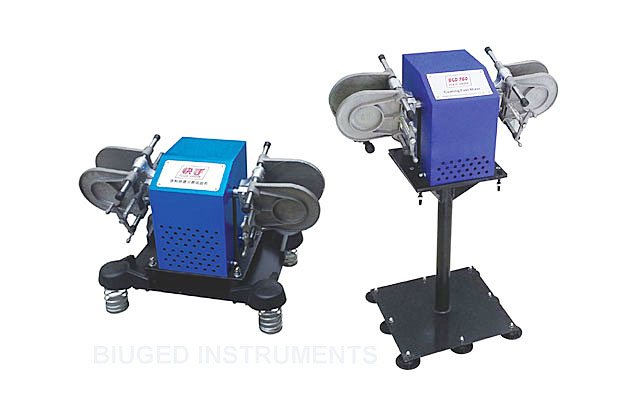

Coating Fast Mixer

Having a high efficiency mixer for the dispersing job becomes more necessary. That is why we designed our coating fast mixer. BGD 760 mixers are a great mixing solution that are capable of handling an extremely broad range of materials for countless applications including automotive, chemical, wood finishes, marine, R&D, and various lab settings.

Suitable for a wide range of mixing applications

With two types for option
Carrying Can--- Shakes a variety of containers of all sizes and shapes
User should prepare container by himself. The max. diameter of container is 180mm, the container height range is from 65mm to 180mm

Carrying Bottle---Shakes eight glass bottles whose capacity is 200ml Each arm have four bottles ,and every bottle can finish dispersing of 150ml sample

 Two different structuresColumn type and Floor type, are suitable different applications

 With timer can automatically stop mixing cycle

Motor550W 220V 50Hz

Crankshaft Revolution660 r/min

Main Shaft Reciprocating Stroke16 mm

Upper and lower maximum Amplitude8 mm

Head Arm Swinging Angle30°

Overall Dimension790mm×520mm×1090mm length by width by height

Weight80KG

Ordering Information

BGD 760/1---Coating Fast Dispersing Tester (Column type with carrying can)

BGD 760/2---Coating Fast Dispersing Tester(Column type with carrying bottle)

BGD 760/3---Coating Fast Dispersing Tester (Floor type with carrying can)

BGD 760/4---Coating Fast Dispersing Tester( Floor type with carrying bottle)
