Closed Paint Mixer/Shaker

       Description: When working, put the container with materials which need to be dispersed into the machine, clamp it with a special clamping device, set dispersion time, materials will be quickly and effectively dispersed through high-speed rotating and shaking. Easy and convenient to operate with good dispersion result, without leakage of VOC or pollution, effectively improve environment of workshops or laboratories.

        According to working principle, these closed paint mixers and shakers are divided into two types: shaking type and rotating type. The container of shaking type is shaken up and down, back and forth repeatedly at high speed; while the container of rotating type revolves and rotates in all directions at the same time.

Features:

Manual Shaking Type Mixer：

◆ Door opening and shutdown protection device - safety interlock: to prevent cabinet door from being opened when machine is running, safe and reliable.

◆ The container support table inside machine can be pulled out, rotated and fixed, saving time and effort during operation.

◆ Manually clamp the container, and the clamping force depends on you, suitable for any size and type container.

Automatic Shaking Type Mixer：

◆ Independently developed and customized chip control technology, intelligent, visual and user-friendly.

◆ Automatically run self-checking program before operation.

◆ Preset mixing time, LCD displays entire working status.

◆ Automatically detect container size and adjust platen height.

◆ Automatically tighten or loosen container, automatically adjust clamping force according to container’s size.

◆ Adjust or set working parameters (such as language, clamping force, etc.) through control panel.

◆ Recognize fault through error code which display on LCD screen .

◆ Stop working or increase working time through buttons on panel.

◆ Trapezoid structure + separation of machine and shell, stable vibration and low noise.

◆ Emergency stop switch and double door lock structure (national patent: Patent NO.ZL 2007 2 0052568.3) ensure safety.

◆ Drum design, easy to load or unload container.

Automatic Rotating Type Mixer：

◆ Independently developed and customized chip control technology, intelligent, visual and user-friendly.

◆ Automatic initialization when power on.

◆ After starting up or pressing emergency stop button, enter into working status without initialization if the clamping device is in a vertical position.

◆ Preset mixing time, LCD displays entire working status.

◆ Automatically detect container size and adjust platen height.

◆ Automatically tighten or loosen the container, and automatically adjust clamping force according to container’s size.

◆ Adjust or set working parameters (such as rotation direction, rotation speed, language, clamping force, etc.) through control panel.

◆ Multi-stage frequency conversion speed regulation technology, automatically adjust rotation speed, pressure, etc.

◆ 720 degree forward and reverse rotation technology (national patent: Patent NO.ZL 2007 2 0052569.8), various rotation modes are available.

◆ Emergency stop switch and double door lock structure (national patent: Patent NO.ZL 2007 2 0052568.3) ensure safety.

◆ Motor brake positioning replaces the old electromagnet technology, more efficient and reliable.

◆ Recognize fault through error code displayed on LCD screen .

◆ Stop working or increase working time through buttons on panel.

◆ The lower clamping plate can be moved forward to easily load or unload container.

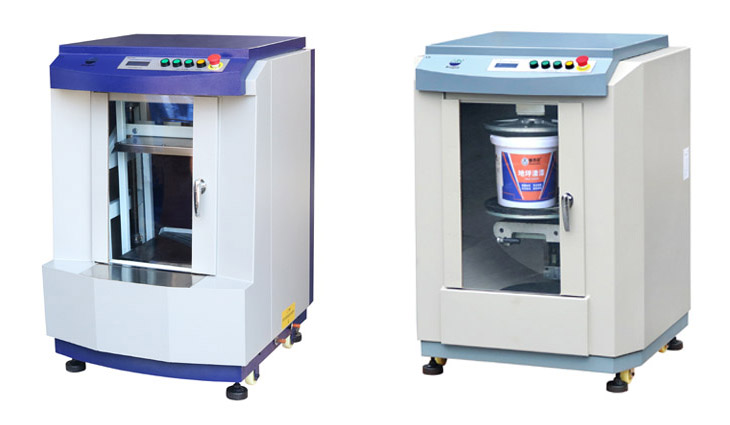

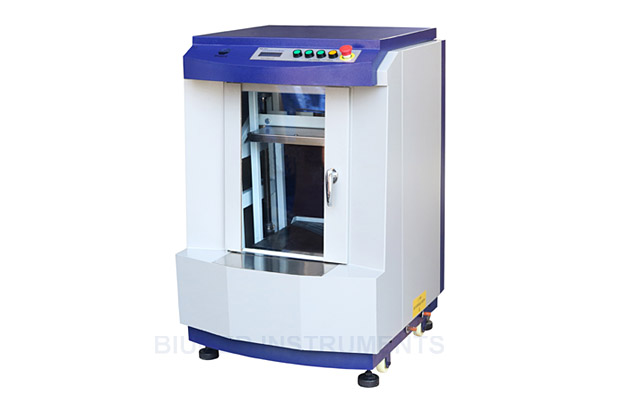

                          BGD 763/1                                                                     BGD 763/3                                                                  BGD 764/3

Main Technical Parameters

Introduction Video

BGD 763 Closed Paint Mixer.pdf
