One-body High-Temperature Oven (Muffle Kiln)

The new generation box resistance oven is integrated with the Company’s years of experiences in design and manufacturing as well as foreign technologies. It is of various design patents and is especially supplied to the laboratories of factories, mines, universities and scientific research institutions for chemical element analysis and such high-temperature treatment as quenching, annealing and tempering of small castings. It can also be used for such high-temperature heating as baking, dissolving and analyzing of metals, graphite and ceramic.

Features

 Unique design of oven door for safe and easy operation to ensure that the high-temperature hot gas will not escape for inside the oven.

 Inert gas outlet reserved in the chamber.

 Micro-computer PID Controller: easy operation, accurate, reliable and safe control.

 Inside lining of fire-door and box panel are both made of stainless steel materials and are featured for corrosion-resistance and free deformation under high temperature.

 Light chamber for durable service (refractory-brick chamber and ceramic-fiber chamber are optional)

 With excellent door seal, thermal loss is minimized and temperature evenness is increased in the chamber.

 Optional 30-segment programmable controller, each segment can setup “heating” or “stop” and the circulation of programmed temperature, time heating power is provided.







Technical Item

Ordering Information

Max Temp(℃)

Chamber Size

W×D×H(mm)

Capacity

Power

   Input
   Power

    Heating
    Element

SX2-2.5-10

1,000

200×120×80

2L

220V/50HZ

2.5 KW

heating cord

SX2-4-10

1,000

300×200×120

7L

220V/50HZ

4 KW

heating cord

SX2-8-10

1,000

400×250×160

16L

380V/50HZ

8 KW

heating cord

SX2-12-10

1,000

500×300×200

30L

380V/50HZ

12 KW

heating cord

SX2-2.5-12

1,200

200×120×80

2L

220V/50HZ

2.5 KW

heating cord

SX2-5-12

1,200

300×200×120

7L

220V/50HZ

5 KW

heating cord

SX2-10-12

1,200

400×250×160

16L

380V/50HZ

10 KW

heating cord

SX2-4-13

1,300

250×150×100

4L

220V/50HZ

4 KW

heating cord

SX2-6-13

1,300

400×200×160

13L

380V/50HZ

6 KW

heating cord

SX2-8-13

1,300

500×200×180

18L

380V/50HZ

8 KW

heating cord

SX2-8-16

1,600

300×150×120

5.4 L

380V/50HZ

8 KW

Globar

SX2-12-16

1,600

400×200×160

13 L

380V/50HZ

12 KW

Globar

Remarks

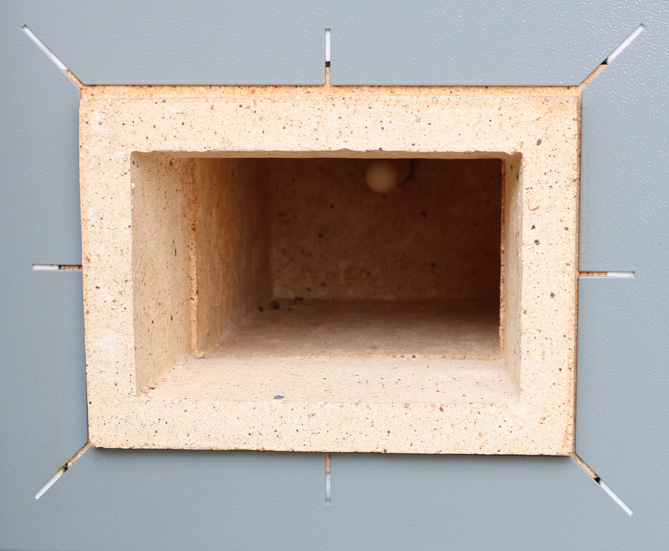

For every chamber, we offer two types inner material, one isrefractory-brickmarked with N”,the other is ceramic-fiber marked with T”, please mark it when you   place order.
Optional accessory: Programmable controller with 30-segments or 60-segments
