Big Xenon Test Chamber

BGD 862 Plus is a multi-function big xenon light accelerated weathering testers which is equipped with one piece high power 6.5KWwater-cooling xenon lamp, its exposure area arrive 6,500cm2


Powerful functions and reliable test results

Meet with all international standards of xenon test.

Equipped with USA brand xenon arc lamp , filter and components, ensure to get high and same running parameters. Test results have a good reliability and repeatability comparing with import machines.

Automatic rotating drum-type sample rack with three floors structure maximizes exposure uniformity over all specimens

6,500cm2 exposure area , can hold different shapes and sizes samples.

Can set the cumulative energy (total irradiance energy)obtained by sample to finish a test procedure.

Advanced cooling system for xenon lamp and intelligent air system.

Chinese or English operation window


Remote monitoring and cloud data services

 Remote monitoring of all the running conditions of Xenon Test Chamber, and storing data in Cloud Server, which is convenient for users to manage data.

 With the mobile APP, it is convenient for users to monitor the operation of the instrument at any time.


Can set and control automatically many test parameters

 Irradiance energy can be set and accurately controlled(340nm, 420nm, 300nm~400nm,300nm~800nm). The "Solar Eye" control system can monitor and automatically compensate the change of light intensity caused by ageing or other factors.

 Working room temperature, BPT(black panel temperature)and BST(black standard temperature)can be set and controlled automatically. With high precision Pt 100 temperature sensor, all these temperatures could be monitored accurately.

 Working room relative humidity can be set and controlled automatically. With ultrasonic wave humidifying system, the working room can obtain more stable and uniform humidity distribution.

 Can set spray way to sample(front spray or back spray), spray time and spray interval time.



BGD 862-PLUS-03.jpg

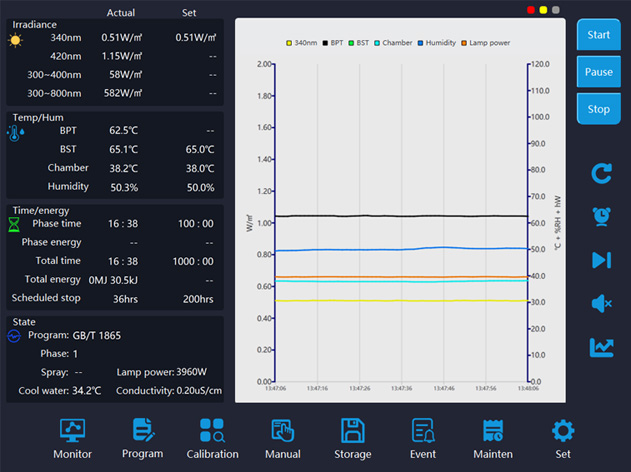

Operation-Menu


Simple, easy to use

 Colorful touch screen and user-friendly operation interface allow operator to set the test parameters and monitor it easily.

 The test procedures can be programmed freely, and up to 6 predetermined procedures can be saved in one time.

 Operator can also set the test program. Up to 9999 programs can be edited, and each program can set 30 different working conditions. A large number of user programs can be saved, which is flexible and convenient.

 With USB interface, operator can export any test parameters with Excel format at any time, convenient to check B-SUN's running status at any time.

 Equipped with pure(deionized)water machine. With high purity water, operator can get a more reliable testing result,Chamber has alarm function for monitoring water.

 Special test sample shelf size and clamping mode can be customized according to customers requirements.


Safe and reliable

 Many alarm protections: Big irradiance difference, water conductivity is over limits, too high temperature of cooling water, too low flow rate of cooling water, over-temperature, heating problem.  B-SUN will stop running automatically and show the alarm information in the operation window.

 Can select TCP/IP Ethernet interface, the user can tele-control the machine through TCP/IP internet. Convenient to help customers to slove all problems and do some necessary after service.




Working Room





Main Technical Parameters

Ordering Information

Technical Item

BGD 862 Plus Xenon Test Chamber

Xenon Lamp

6.5 KW water cooling long arc xenon lamp

Light Filter

Import originally from USA brand, can simulate indoor or outdoor sunshine spectrum

Exposure Area

6,500 cm263-65 pcs standard samples of 15cm×7cm size

Monitoring Method to Irradiance

Four types340nm420nm300nm400nm300nm800nm

Showing at the same time

Adjustable Irradiance

See Table B.

Lifetime of lamps

2,000 hours

Adjustable Range of BPT

RT~110

Adjustable Range of BST

RT~120

Adjustable Range of Working room

RT~70℃(Dark

Temperature Stability

±1

Temperature Uniformity

≤2

Temperature Deviation

≤ 1

Adjustable Humidity

Light10%-75%    Dark10%-95%

Rotate speed of sample

1 r/mincircle as lamp centre

Spray Function

Can set spray continuous time and spray period

Water Demands

High purity deionized waterConductivity<2us/cm

        Compressed Air

Cleanoilless compressed air with 0.5MPa pressureMax. air supply is near 60L/min. Average air consumption is 10L/min30L/minDepends on testing standard

Flow of Deionized Water

The water consumption for 24 hours is 300L-400L.Taking the continuous run of cycle A for 24 hours in ISO 11341 standard as an example

          Power Supply  AC380V±10%Three-phase four-wire 50HzMax. Current 50AMax. Power 9.5KW

Overall Size

1,220mm×1,200mm×1,970mm(L×W×H)

Net Weight

500 KG

Structure

Cabinet Material

Working room is made up of high quality stainless steel SUS316

Chamber Door

Simple door to left with filter windowsilicon rubber seal the door edge

Sample Holder

Stainless steel material, its position in the chamber can be adjustedup, middle or down, Sample crack rotate around the centre of lamp

Controller

Siemens programmable controller. LCD touch-screen

Way of adding humidity

Add humidity by high pressure aerosol

Thermometer

Heat insulate type black standard thermometer and black panel thermometer

Cooling System

Cooled by compressor and forced-air blast system

Security Protections And Error Protections

Xenon Lamp Protection

Over temperature of cooling waterlow flow of cooling waterabnormal of lamp power

Alarm Function

Big irradiance difference, over-temperature of BPT or BST or Working room, big error of humidity, spraying water shortage, pure water conductivity is over limits.

Operator can set these values and downtime

Cooling Water System Protect

    Monitor the conductivity of Cooling water at real-time

Protection to Radiation

   Xenon lamp will turn off automatically when opening the chamber door, in case xenon lamp radiate operator

Installing Environment Requirement

Site Requirement

Net area of installation site 12m2Net height2.8m.

Equipped with separate air condition which can ensure a 22℃~30℃ & 30%80% environment permanently.

No strong electromagnetic fields, no high concentration dustno corrosive gas or flammable materials.

Power Source

   380V10%  3-phases50Hz50A power sourceEquipped with circuitground wire and air circuit breaker.

Air Outlet

    There should be air outletDistance to chamber 1.0mheight to ground is 2.5m2.7m, diameter should be 153mm

Water Supply

 Equipped with water supply pipes and valvesSupply water pressure2.0kg/cm2conductivity120us/cm

Drainage

Draining pipes diameter 50mmheight to ground10cmdistance to chamber0.5m

Table AMain Configuration

Products

Numbers

Manufacture

Notes

Xenon Lamp

1 pc

USA brand

6.5KW

Filter

1 set

USA brand

Includes five inner filters and one 4.5K/6.5K outer filterS BORO/S BORO

Control System

1 set

SIEMENS

S7-SMART PLC+ Siemens analog input

Interface

1 pc

Industrial control integrated computer

15 human-computer touch screen

 Table BAdjustable Range of Irridiance

 Combinating Filters

Adjustable Range of IrridianceW/㎡)

Filters

Inner Filter

Outer Filter

Lamp PowerKW

340nm

420nm

300-400nm

Daylight

Type S Boro

Type S Boro

2.57.5

0.251.26

0.592.76

29141

Window Glass

Type S Boro

Soda Lime

2.57.5

0.231.10

0.612.76

28129

Extended UV

Quartz

Type S Boro

2.57.5

0.291.50

0.592.79

32161



ISO 11341Paints and varnishes-Artificial weathering and exposure to artificial radiation--Exposure to filtered xenon-arc radiation

ISO 12040 Graphic Technology - Prints and Printing Inks - Assessment of Light Fastness Using Filtered Xenon Arc Light

ISO 16474-1 Paints and varnishes -- Methods of exposure to laboratory light sources -- Part 1: General guidance

ISO 16474-2 Paints and varnishes -- Methods of exposure to laboratory light sources -- Part 2: Xenon-arc lamps

ASTM D3451 Standard Guide for Testing Coating Powders and Powder Coatings

ASTM D3794Standard Guide for Testing Coil Coatings

ASTM D4303  Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints

ASTM D5010 Standard Guide for Testing Printing Inks and Related Materials

ASTM D6577 Standard Guide for Testing Industrial Protective Coatings

ASTM D6695 Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings

ASTM G151Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources》

ASTM G155Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials

ISO 4892-1 Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance

ISO 4892-2Plastics - Methods of Exposure to Laboratory Light Sources - Part 2: Xenon-arc lamps

SAE J2412 Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus

SAE J2527 Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Xenon-Arc Apparatus


Optional Accessories:

BGD 8158---USA brand 6.5 kW Xenon Lamp Water-cooled

BGD 8159---USA brand 6.5 kW Xenon Lamp Water-cooled

BGD 8160--- USA brand 2000 HRS Supply PKGIncludes one BGD 8158 USA brand 6.5 kW water-cooled lamp5pcs S65 inner filtersone pc 4.5K/6.5K outer filter

BGD 8161---6.5KW BGD 2000 HRS Supply PKGIncludes one BGD 8159 USA brand 6.5 kW water-cooled lamp5pcs W-143 inner filtersone pc W-144 outer filter

BGD 8171--Purity Water System100L/h, pure water can less than 0.1µS/cm input water200µS/cm))

BGD 8176—Cooling Water MachineFor cooling and cycling pure water, can greatly reduce water consumption)

BGD 8179---Air Compression SystemIncludes air compressorair reservoirfreezing dryerprecise filter etc

BGD 8186---Daylight Filter

BGD 8187---Window Glass Filter

BGD 8192---Metal Frame Air Filters

BGD 8197---Sample shelf

 Xenon Calibration Radiometer
