Instruments
Temperature Tracker

       Temperature Tracker is a user-friendly device.It takes just a few minutes to learn how the entire system works. It’s excellent suited for industrial oven and laboratory oven temperature profiling. Mandatory test in Qualicoat, QIB and GSB accredited laboratories.

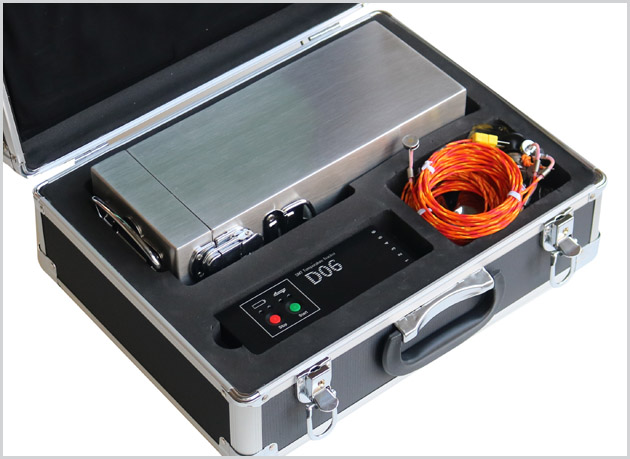

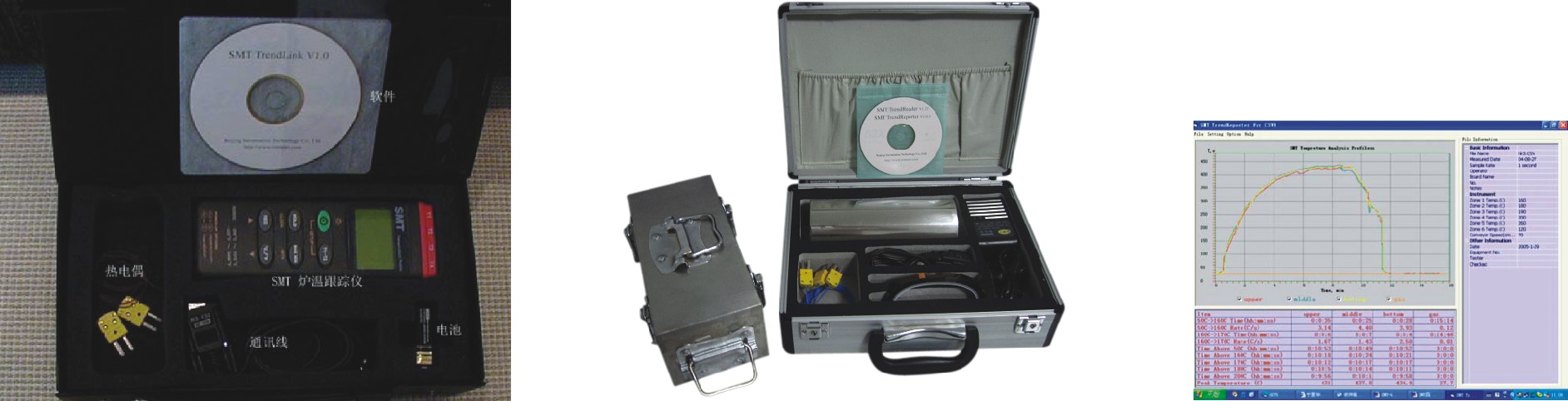

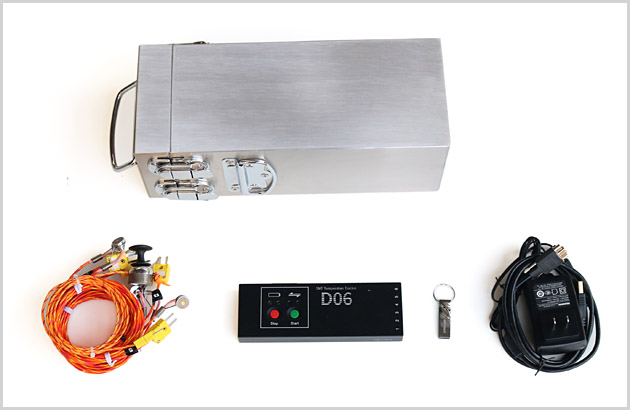

Temperature Tracker is mainly made up of Oven datalogger, analysis software and insulation box.

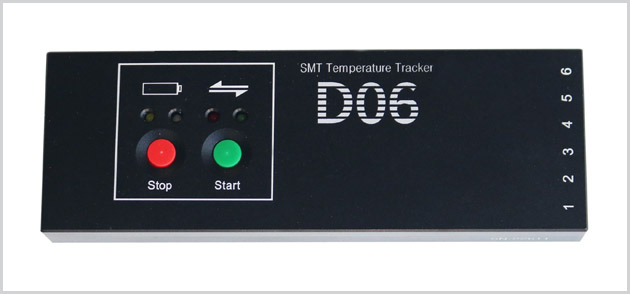

Oven datalogger Oven datalogger is the heart of temperature tracker. It designed to measurement temperature and store them for a specified amount of time. This instrument measures continuously but only stores readings at certain intervals defined by the operator. The maximum recording period depends on the number of sensors being used and the specified recording interval.

It offers easy-to-use, high quality temperature logging for industrial paint and powdercoat cure ovens. The oven data tracker is fitted with a large display for easy menu-driven operation and quick display of measurement results.

       Analysis software: allows user to analyse the logged temperature data and create detailed reports. Advanced oven profiling features like cure data analysis, ideal cure and tolerance bands, together with a wide range of display, report and printing options, make Oven Logger the most flexible temperature logging solution available.


Insulation BoxA high quality insulation box with outer shield of high-grade stainless steel. The anodized aluminum inner box is shielded with a carefully formulated mixture of insulation material, which makes the combination suitable to resist high temperatures for long time. This insulation box is absolutely silicone free, and therefore very suitable for applications in automotive and wet paint coatings.


BGD 957-1-01.jpg

BGD 957/1


BGD 957-1-02.jpg


BGD 957-1-03.jpg


BGD 957-1-04.jpg

Ordering Information

Technical Item

One-Channel

Four-Channel

Seven-Channel

BGD 951

BGD 954/1

BGD954/2

BGD 957/1

BGD 957/2

Number of Channels

1

4

4

7

7

Temperature Range

-100300

-100300

-100500

-100300

-100500

Duration

45min for 200

60min for 150

60min for 300

120min for 150

60min for 500

120min for 300

   60min for 300

  120min for 200

    60min for 500

   120min for 300

Division

0.1

0.1

0.3

0.5

Accuracy

0.5%

0.5%

0.5%

Storage

       Can store 32,000 readings.        Record per seconds for 5 hours

    Every channel can store  16,000 readings.   Record per seconds for 5 hours

Record per secondsfor 4 hours

Record per seconds  for 3 hours

Sampling period

1s, 10s

1s,   2s, 3s, 4s, 5s, 6s, 10s, 20s, 30s, 1min

programmable

1s,   2s, 3s, 5s, 8s10s12s, 20s,40s, 60s programmable

Setting Software

Can select sampling period

Print the Tem.Curve withComputer

Check  the data with EXCEL

Can select sampling period

Show the real-time Tem.curve

Can save many groups data’s



Can select any channel seperately

Calibrate each channel seperately          Can select sampling period



Analysis Software

No

Display Tem. datas Calculate heating rate between tow Tem.leverl

Calculate total time above two different Tem Calculate peak Tem.

Compare different Tem. profilePrint Report

Standard Disposition

 Oven datalogger
 2  pcs Thermocouple0.5m, 1.5m

 USB cable

Setting software
 Manual

 Oven datalogger

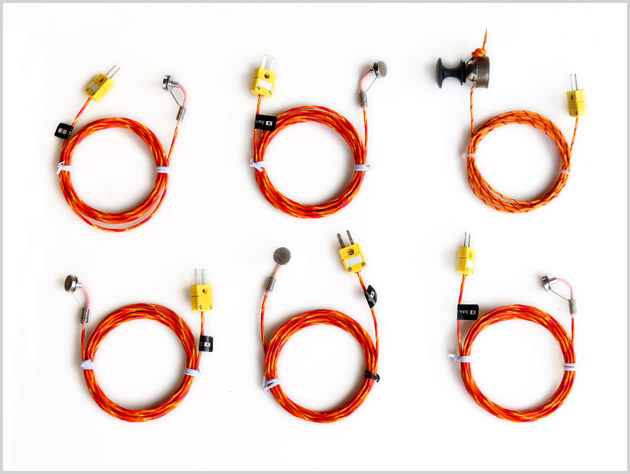

 4 pcs temperature sensors

 USB cable

 Setting software and Analysis software

Insulation box

 Manual

 Oven datalogger
 7 pcs temperature sensors

 USB cable

 Setting software and Analysis software

Insulation box

 Manual

Size

Φ 63×160mm

110×125×300mm

135×155×300mm

100×120×280mm

130×160×300mm
