Substrates

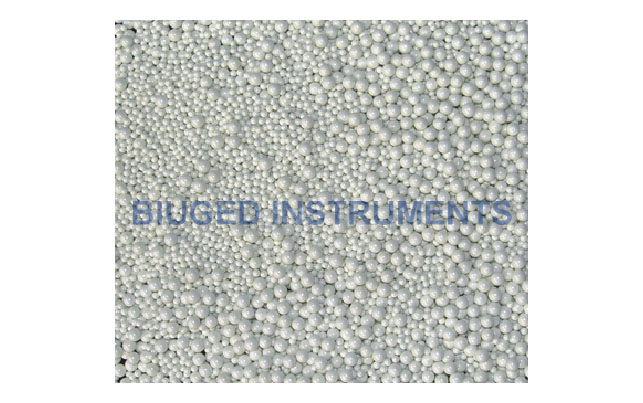

Zirconia Beads

The Zirconia-beads is the ideal grinding medium produced by introducing advanced equipments and technics, widely used in the field of painting, printing ink, paper printing, packing, dye and medicine, etc

 High efficiency of grinding: As the density of Zirconia beads is high, grinding kinetic energy is larger at same speed; efficiency of grinding is 2-3 times higher than that of general porcelain beads,getting better effect.

 Impact resistance, low consumption:As the content of ZrO2 in TZP Zirconia beads is high, it has the advantages of high density, high toughness, low consumption, no fragmentation and no peeling, etc., as well as little pollution to grinded object; the consumption is 4-10 times lower than that of general porcelain beads.

 Good stability: excellent stability, resistant to acid and alkali

 Good fluidity: good roundness, smooth surface, no air hole, reflecting polish, easy to clean; good fluidity between beads; little abrasion to equipments;

 Low cost: The abrasion of Zirconia beads is the lowest in all grinding medium at present. Compared with oversea products, our Zirconia beads is lower in abrasion, favorable price, it is honored as the best bead in the world at present. To use this product, it will greatly reduce synthesis cost for users, such as medium consumption, electrical consumption, labor force and equipments; realize dual output and improve quality in the condition of not adding any equipment. The earlier you use it, the earlier you will get benefit.


Main Technical Parameters

Properties

ZR95

ZR85

ZR64

ZrO2 content

94.5 %

85%

50%60%

Density

6.0g/cm3

5.3g/cm3

4.0g/cm3

Bulk

3.7g/cm3

3.3g/cm3

2.3g/cm3

Crushing strength

>2KN(¢2mm

>1.8KN(¢2mm

>1.5KN(¢2mm

Mohs’ hardness

9

9

8

Self consumption

≤0.01g/Kg.h

≤0.01 g/Kg.h

≤0.01 g/Kg.h

Specification

0.2-3.5mm

0.5-7.0mm

0.5-7.0mm

 Ordering Information:

BGD 1340---ZR64 Beads (25kg)

BGD 1341---ZR85 Beads (25kg)

BGD 1342---ZR95 Beads (25kg)


NOTE

To select Zirconia beads in types, sizes and quantity in accordance with adhesion, rigidity and dispersal and grinding requirement of the grinded materials.

To clean Zirconia beads and mill's inside before the grinding processes.

To input the grinded materials firstly and a certain amount of Zirconia beads later. To add continuously Zirconia beads till 70%—85% of the mill is full.

 To forbid to keep Zirconia beads running with little grinded material for a long time, The mill is easily broken when the Zirconia beads inside at high speed operation.

 To add fresh Zirconia beads to ensure the quality efficiency of grinded materials
