Instruments

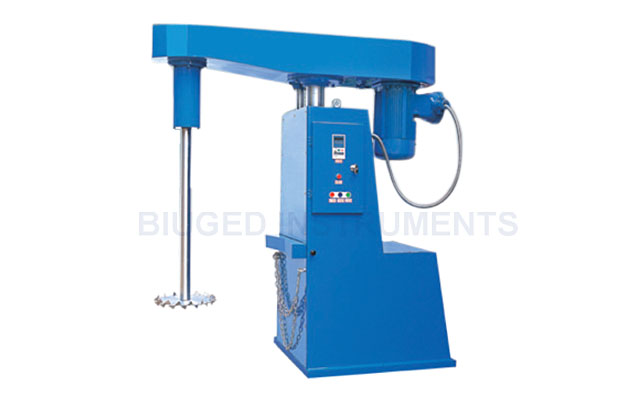

Single-shaft High Speed Disperser

Single-shaft High Speed Dispersers are commonly used in chemical for mixing and distribution with variable frequency speed adjustmentCurrently available for customers to choose from the ordinary or the explosion-proof models.

Items of this equipment with blade distributor, oar distributor or anchor distributor are designed on request with variable specifications of power. With hydraulic lift system, these machines’ lift distance and centre distance between the base and the scattered axles.

If required, User-friendly hydraulic lift system of 180° rotation is available, it easily operated.



Ordering Information
  Main Technical Pararmeters

BGD 8011

BGD 8013

BGD 8015

BGD 8017

BGD 8018

Motor Power

7.5 KW

11 KW

15 KW

18.5 KW

22 KW

Total Power

9 KW

13 KW

17 KW

21 KW

25 KW

Working Travelmm

900

900

1000

1000

1200

Adjustable Speed

01450 r.p.m

Suitable Container CapacityL

300500

300600

400700

500800

5001000

Including Dispersing Blades(mm)

Φ250Φ280

Φ250Φ280

Φ280Φ300

Φ280Φ300

Φ300Φ320

Overall   Size cm

170×80×180

175×80×180

180×90×180

195×90×205

195×90×205
