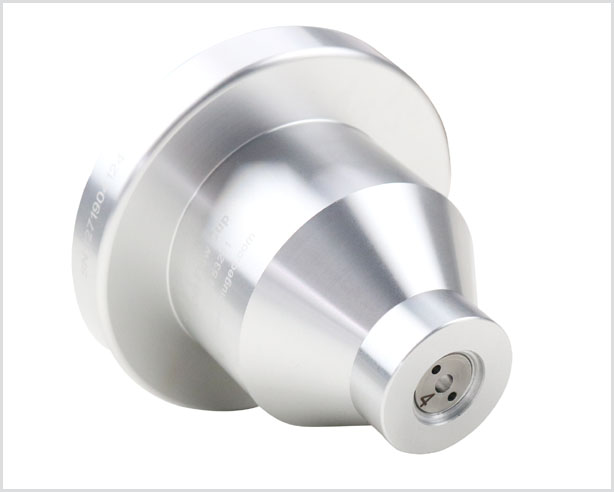

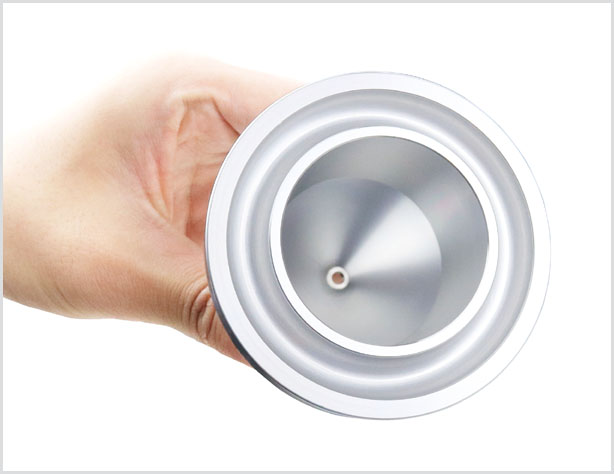

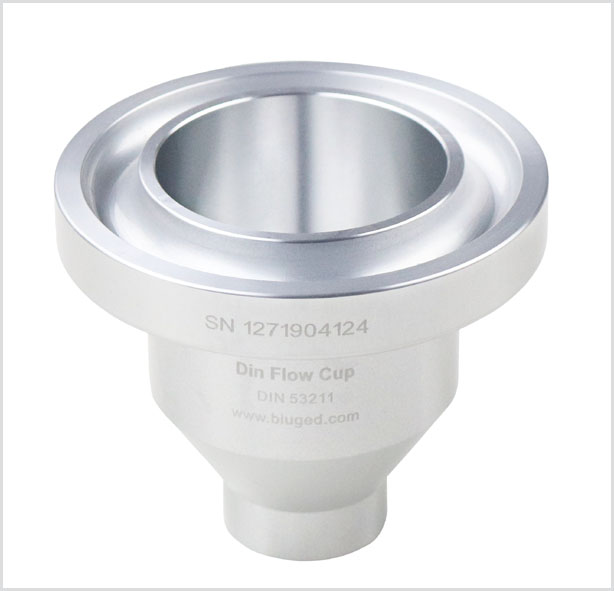

Din Flow Cup

The Biuged DIN and Dip Viscosity Cups are produced with an easily removable orifice. Cup and orifice production tolerance permits replacement of the orifice without loss of acceptable tolerance. In accordance with Deutsche Normen DIN 53211.

It complies with DIN 53211 standard and is applied for low viscosity liquids.


BGD 127-01A.jpg


BGD 127-06.jpg


BGD 127-03.jpg


BGD 127-05.jpg

Main Technical Parameters

 Volume of Cup: 100ml±1ml

 Orifice Diameter Tolerance: ±0.02mm

 Body is made of anodized aluminum

 Stainless steel orifice, interior polished

 Come with calibration certificate

 Ordering Information

BGD 127/2---Din 2# Flow Cup(Orifice Dia.:2mm)

BGD 127/4---Din 4# Flow Cup(Orifice Dia.:4mm)

BGD 127/6---Din 6# Flow Cup(Orifice Dia.:6mm)

BGD 127/8---Din 8# Flow Cup(Orifice Dia.:8mm)

BGD 127/4P---Hand-Held Din 4# Flow Cup(Orifice Dia.:4mm)

BGD 1272---Din Flow Cup Nozzles
