Intelligent Touch-screen Rotary Viscometer

BGD 162 Intelligent Touch-screen Rotary Viscometers are the newest generation to take advantage of the power of the new technology. Compared with other rotary viscometers, BGD 162 are more stable, more precise and more easy to operate.

Features

Conforms ISO 1652,ISO 2555,ISO 3219,ASTM D2196,ASTM D2983 etc.

 7 inch high definition colorful touch screen which show directly viscosity value, rotor speed, torque etc, easy and convenient to operate.

 Magnetic rotors, fast and easy to install or disassemble, also avoid the damage to small shaft.

 Built-in high precision electric gradienter and the screen show machine’s level status, convenient and fast to adjust the levels.

 Strong compatibility, users can calibrate it by themselves.

 More samplings per one rotation.

 With high sub division stepper motor,the viscometer rotate with accurate speed,low noise and more stable.And the fluctuation

of AC power frequencydon't influence viscosity measurements.

 Showing viscosity value changes continuously and the machine would alarm when it’s over measurement range.

 Calibrate linearly under the whole range by computer, measurement precision is ±1.0% of full range.

 For thixotropic Non-Newton fluid, timing function of viscometer can ensure to get a consistent measurement results.

 Toughened galss base, easy to clean and more durable.

 ARM chip processor, processing data more quickly

 Convert freely between various viscosity units , dynamic viscosity convert kinematic viscosity automatically

 Can export data by U disc


BGD 162-03.jpg


BGD 162-08.jpg

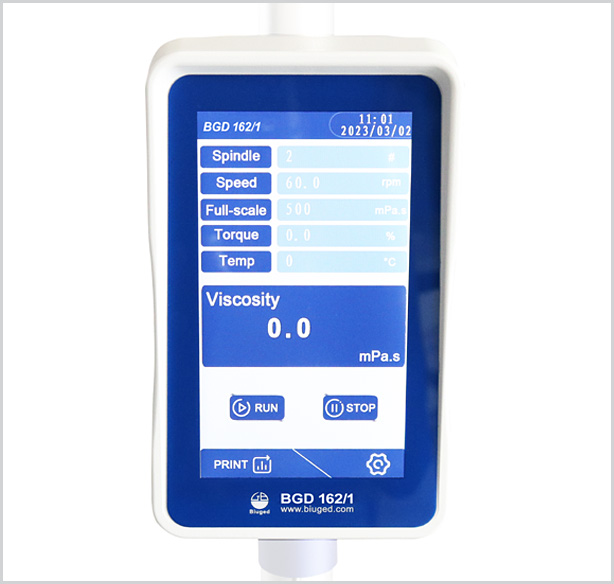

7 inch high definition colorful touch screen, display more information


BGD 162-05.jpg

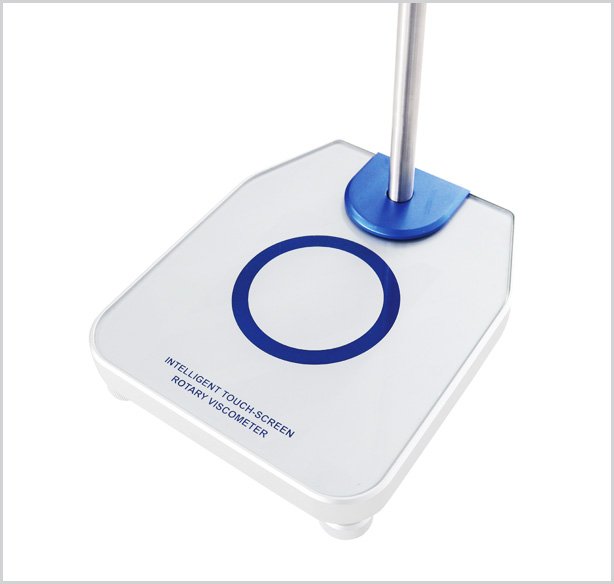

 Toughened glass base, easy to clean

Main Technical Parameters

      Ordering   Information

Parameters

BGD 162/1

   Intelligent  Touch-screen Rotary Viscometers

BGD 162/2

  Intelligent  Touch-screen Rotary Viscometers

Measurement Range

10100,000105mPa.s

102,000,000106mPa.s

Rotate Speedr/min

6,   12, 30, 60

0.3 , 0.6, 1.5, 3.0, 6.0, 12, 30, 60

Come with Rotors

LV1LV2LV3LV4LV0 for optional

  Measurement Range of LV 0
             Rotor
Optional

1100 mPa.s

12000   mPa.s

Measurement   Accuracy

± 1.0 % of full rangeNewtonian fluids

Repeatability

± 0.5 % of full rangeNewtonian fluids

Power   Supply

Power Supply Adapter110V/220V50Hz/60Hz

Overall  Size/ Net Weight

200mm×240mm×620mm / 7KG

Optional   Accessories

BGD 162/Z-001--- UL AdapterLV 0 rotor + Specified Container

BGD 845/846--- Low-high Temperature Circulating Bath
