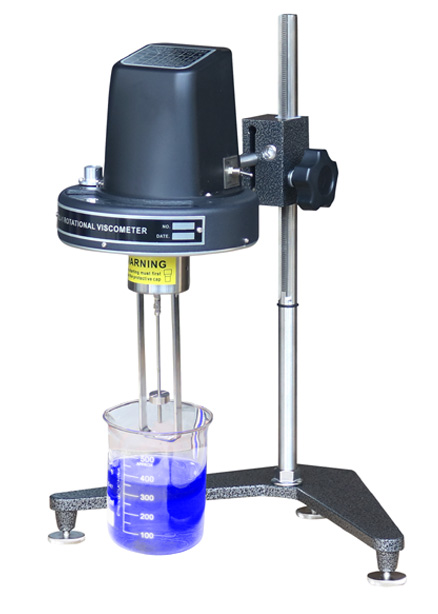

Dial Rotary Viscometer is used in measuring viscosity friction and absolute viscosity of liquid. It has four rotors of NO.1-4 which can be chosen to be in accordance with the viscosity of the liquid and the rotation speed. It is widely used to determine viscosity of various liquids such as oil, paint, plastic, food, medicine, adhesive, etc. It is widely applied in the field of petroleum chemistry, medicine, food, light industry, textile industry, scientific research, etc.

Main Technical Parameters

■ Measurement Range：10-100,000mPa.s（cP）

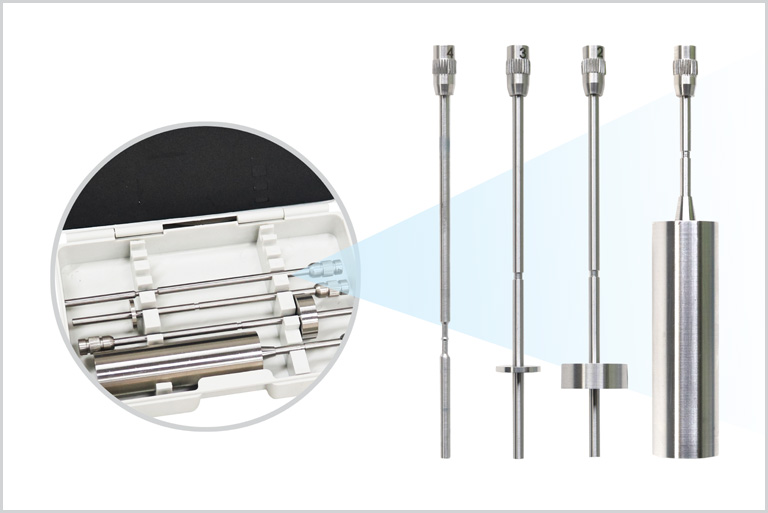

■ Rotors：Four rotors---No.1，No.2，No.3，No.4

■ Rotate Speed：6r/min,12r/min,30r/min,60r/min

■ Measuring Error： ±5%（Newtonian fluids）

■ Electrical Power：220V/50Hz

■ Weight：6.77 KG

■ Dimension：460mm×220mm×480mm（L×W×H）

■ Ordering Information：

BGD 151/1---Dial Reading Rotary Viscometer

BGD 1601---Low Viscosity Adapter（1～10 mPa.s）

THD Series---Low Temperature Thermostatic Bath
BGD 1600---Standard Oil（500ml）

BGD 1601---Low Viscosity Adapter（1～10 mPa.s）

BGD 1602---Small Sample Adapter（It’s specially designed for customers with small samples and requires only a quantity as small as 5～18ml；Sample cup is easily cleaned, installed, removed, and observed；Accurate data of shear rate and shear stress can be obtained for a minute analysis of the fluid characteristics of the sample；One-off sample cups are available）

BGD 1605---Thermoses（It has been designed to accurately measure the viscosity of heated oil, paraffin, asphalt emulsions, medicine, high polymer and similar liquid materials at high temperatures. It allows control of a sample’s temperature at a range of room temperature +300℃. It can program the intelligent thermostat and ensures its temperature fluctuation within 0.1℃. Sample dosage is as small as 10ml, and one-off sample cups are available. Standard type of SC4 spindle can be applied, which is easy to use）

BGD 151-1 Dial Reading Rotary Viscometer.pdf
