Instruments

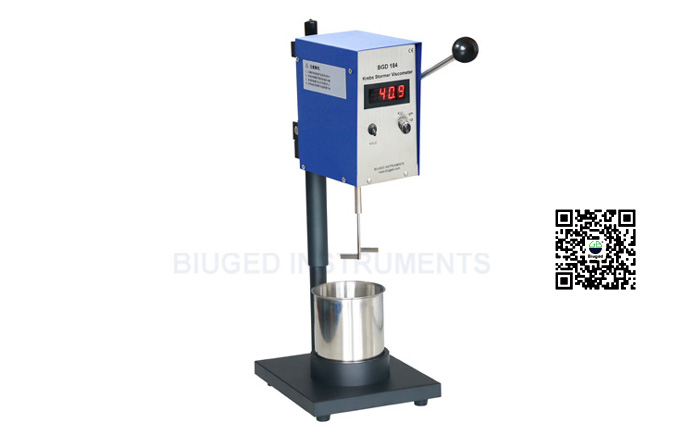

Krebs Stormer Viscometer

BGD 184 Stormer Viscometer is used for measuring the viscosity of Newtonian and non-newtonian fluids in accordance with ASTM D562. The viscosity of a non-newtonian material varies depending on the rate of shear, but Krebs Stormer Viscometer can measure the viscosity at a set speed shear rate which provides a consistent standard.

Based on the popular traditional KREBS method, using a weight-driven rotating paddle to sense the paint viscosity at a constant 200 rpm, this modern digital instrument provides automated motor operation, without weights & pulley, allowing accurate direct reading in KU Krebs unitsor g gram. The conversion between these units is automatically calculated by the microprocessor and displayed on request. Sturdy construction allows for use either in a production environment or in the laboratory.


Features

LED digital display gives the reading in Krebs units or grams.

Magnetic rotor enables rapid installing, dismantlement or cleaning.

Self protection function under over-range.

 Come with Calibration Certificate

BGD 184-01 拷贝.jpg

BGD 184-03.jpg


BGD 184-05.jpg


BGD 184-BACK.jpg


BGD 184-08.jpg



Main Technical Parameters

Range40.2KU141.0KU(27-5250 cP)
Accuracy±1.0% of full scale range
Repeatability±0.5% of full scale range
Paddle Speed200r/min±0.1r/min
Overall Dimensions210mm×180mm×500mmlength by width by height

Package Size560mm×450mm×280mm

Package Weight9.2 KG

Ordering InformationBGD 184---Krebs Stormer Viscometer

BGD 1600/L---Standard Oil for Krebs Stormer Viscometer (67.2 KU)

BGD 1600/M---Standard Oil for Krebs Stormer Viscometer (86.3 KU)

BGD 1600/H---Standard Oil for Krebs Stormer Viscometer (106.6 KU)

BGD 1600/T---Standard Oil for Krebs Stormer Viscometer (121.5 KU)
