Instruments

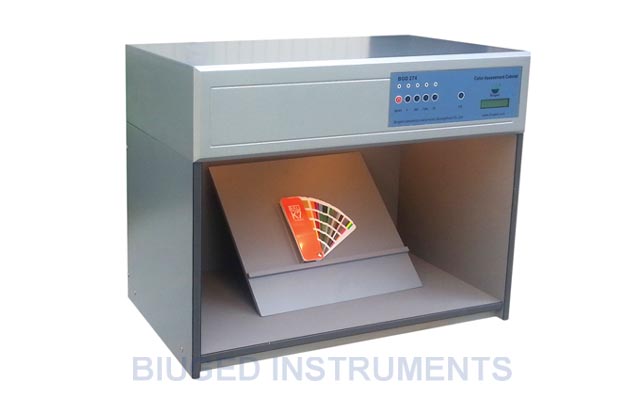

Color Assessment Cabinet

Biuged series Color Assessment Cabinets provide different lights and are controlled by a microprocessor LCD Screen that shows each Lighting usage Time. Each Button controls the individual set of Lights. The CLR(Clear)button allows the resetting of the Lighting Usage Time to ZERO when new lights are replaced. The ON/OFF Switch button must be switched off during long hours(more than 3 to 4 hours)of non-operation. This is to reduce the possibility of heat-up as well as to increase the life span of the electronic ballast. All Lights can be switched on at the same time as according to the user needs. The optional Diffused Glass Panel below the lights ensures the elimination of direct reflection of lights to viewing products, There is no Warm-Up time/Flickering of Lights when there is a constant electrical supply. All electrical components used are of low power consumption and heat generation for energy efficiency in.

The international approved Light Gray Non-Reflective Surface ensures that no light is being reflected from the surface during color matching, so, what you see of your products in our Biuged Color Assessment Cabinets will be as natural as what you view them under the natural color matching conditions. The Non-Reflective Surface has certain degree of roughness not only acts as light absorption when light are illuminated, but it is also scratched-resistance, Many Color-Matching Cabinets do not have this dual ability.

All Biuged Color Assessment Cabinets conform to ISO 3668, ISO 13076ASTM D 1729









Main Technical Parameters

Time running display for each light source.

Auto conversion between light sourcesDifferent spectrum with same color.

No need warm-up and no flicker, enable quick and reliable assessment to sample.

Low power-consumptionNo heat emissionEfficient illumination.

Small size and convenient to use for laboratory or production line

Weight35 KG

Dimensions710mmx410mmx570mm

Ordering Information

Light   Source

Ordering Information

D65

TL84

F/A

UV

CWF

TL83

   (U30)

BGD 274



BGD 275


BGD 276


 Light source

      Light
    Source

Description

Number of

      Light

Power

Color Temperature

D65

International-standard Artificial Daylight

2 pcs

18 W

6500 K

TL84

Applicable to stores in Europe, Japan and China

2 pcs

18 W

4000 K

CWF

Cool White Fluorescent of America

2 pcs

20 W

4150 K

F/A

Comparison referential light source,
Applicable to family/hotel

4 pcs

40 W

2700 K

UV

Ultraviolet light source

1 pc

18W

2856 K

TL83(U30)

Warm White Fluorescent of European Standards

2 pcs

18 W

3000 K

Notice:Biuged instruments also offer some special size(Dimensions:1310mmx600mmx800mm) color assessment cabinets according to customer’s different demand.

BGD 277---45° Normative Stand(has accurate angles and has the same color as the Color Assessment Cabinet/this makes a non-interference viewing effect)
