Fineness of Grind Gauges

Many types of solid materials must be ground or milled into finer particles for dispersion in appropriate liquid vehicles. The physical properties of the resulting dispersions, often called “grinds”, depend not only on the actual size of the individual particles, but also on the degree to which they are dispersed.

The Fineness Gauges are used to indicate the fineness of grind or the presence of coarse particles or agglomerates in a dispersion. It does not determine particle size or particle size distribution.

Grind gauges are used in controlling the production, storage, and application of dispersion products produced by milling in the paint, plastic, pigment, printing ink , paper, ceramic, pharmaceutical, food and many other industries.

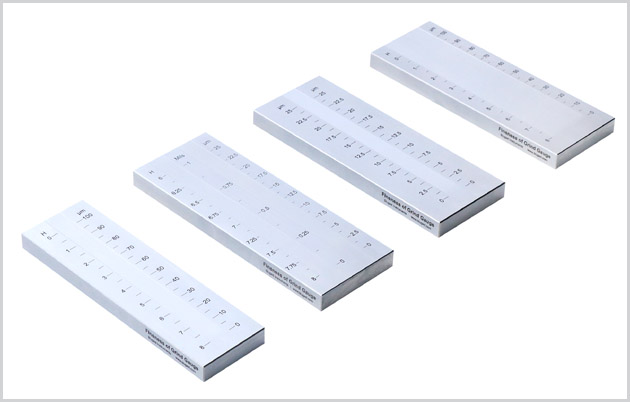

The Fineness Gauges is a flat steel block in the surface of which are one or two flat-bottomed grooves varying uniformly in depth from a maximum at one end of the block to zero near the other end. Groove depth is graduated on the block according to one or more scales used for measuring particle size.

The degree of dispersion is indicated in Micronsµm or Hegman(H), The Hegman scale ranges from 0 to 8 with numbers increasing as the particle size decreases.

0 Hegman =100 microns particle size

4 Hegman =50 microns particle size

8 Hegman =0 microns particle size

The gauge and its scraper are made of hardened stainless steel and have one or two grooves with a graded slope(dependent on the model chosen), graduated in microns, mils, NS (Hegman).Biuged controls precisely every guage and ensure it has a tolerance of ±2µm(both of upper plan and nether plan flatness is less than 3µm ).

It confirms the below standardsISO 1524,  ASTM D 3333, ASTM D 1210, ASTM D 1316, DIN EN 21524. And all gauges come with Claibration Certificate.


BGD 241-01.jpg


刮板-01 拷贝.jpg

Main Technical Parameters

Description

Order

   Information

Groove Size

L×W

Ranges

Overall

      Dimension

Graduation

Number of

Grooves

Unit

Single-Channel

Grind Gauge

BGD   241/0

140×12.5mm

0-15µm

170×50×13mm

0.75 µm

1

µm/
  Hegman

BGD   241/1

0-25µm

170×50×13mm

1.25 µm

1

BGD   241/2

0-50µm

170×50×13mm

2.5 µm

1

BGD   241/3

0-100µm

170×50×13mm

5 µm

1

BGD   241/4

0-150µm

170×50×13mm

7.5 µm

1

Double-Channel   Grind Gauge

BGD   242/0

140×12.5mm

0-15µm

175×65×13mm

0.75µm

2

µm/

Hegman/

Mils

BGD   242/1

0-25µm

175×65×13mm

1.25 µm

2

BGD   242/2

0-50µm

175×65×13mm

2.5 µm

2

BGD   242/3

0-100µm

175×65×13mm

5 µm

2

Wide-Channel

   Grind Gauge

BGD   244/1

140×37.0mm

0-25µm

175×65×13mm

1.25 µm

1

µm/
  Hegman

BGD   244/2

0-50µm

175×65×13mm

2.5 µm

1

BGD   244/3

0-100µm

175×65×13mm

5 µm

1
