Basket Mill

     BGD 755 series Basket Mill is an integrated equipment, which combines milling and dispersing to reduce particle size for paint, coatings, inks and pigment dispersions applications. The basket mill integrates high speed dissolving and pump wheels, a very narrow particle size distribution can be achieved in this machine。


Features

Replaceable basket structure, easy to clean

Easy to maintain and move from one batch to another different product production

Little grinding media required

Double wall milling basket and double wall container for cooling an heating is optional

Excellent mill results

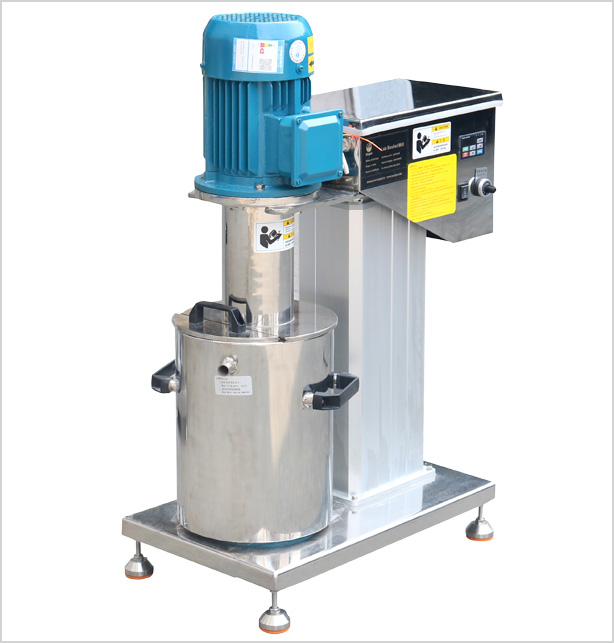

bgd 755-3a.jpg

BGD 755/3

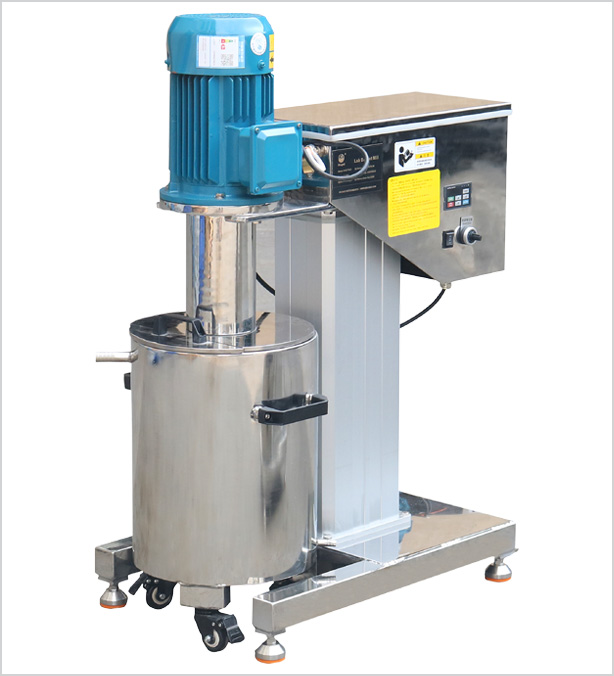

bgd 755-4.jpg

BGD 755/4

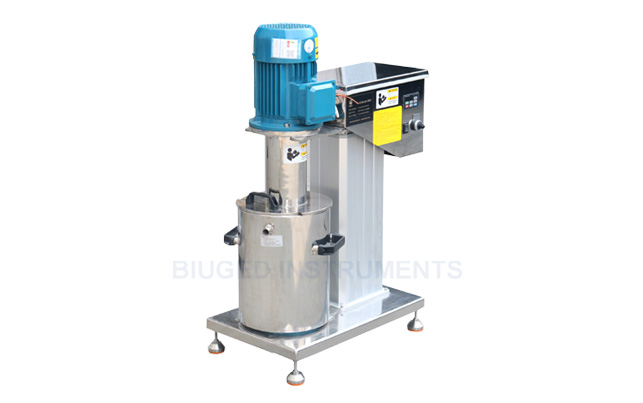

bgd 755-5.jpg

BGD 755/5

 Parameter of Motor1,100W/1,500W/2,200W220V 50Hz

Rotation Speed900 r.p.m-2,800 r.p.m

Processing Capacity5 L-20 L

Control MethodStepless speed control, with digital speed display

Suitable Grinding Medium95% Zirconia beads, 1.6mm-1.8mm

MaterialThe part contacting with material is SS304

Lifting SystemElectric Lift automatically.

Ordering Information

    BGD 755/3---1,100W Basket Mill(5L)

    BGD 755/4---1,500W Basket Mill(10L)

    BGD 755/5---2,200W Basket Mill(20L)
